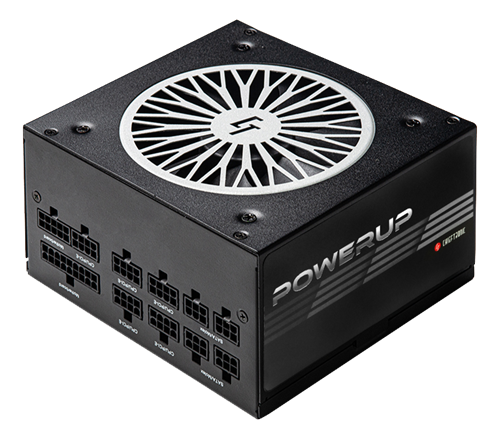

Chieftec PowerUp series 650 W PSU, 80+ gold, ATX 12V ver 2.53, maitinimo šaltinis, juodas / GPX-650FC

Chieftec PowerUp series 650 W PSU, 80+ gold, ATX 12V ver 2.53, black

With the PowerUp series, Chieftronic aims to provide the well-received technical quality and high performance of the PowerPlay series to the regular player market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values ​​and tight voltage regulation can be achieved.

A high power density design means that this series can deliver up to 850 W power in a compact form factor that only measures 14 cm total length, while achieving 80 PLUS Gold-certified efficiency. The compact size combined with the fully modular cable management allows the PowerUp series to be used comfortably in smaller buildings, where a short PSU is needed, while long and flat black cables support computer construction in large chassis.

• 80 PLUS Gold-certified efficiency
• Fully modular cable management
• Full-bridge LLC converter with DC-to-DC technology
• Low ripple and tight voltage
regulation • 5 year warranty

Weight: 2.2 kg


80 PLUS certification    80 PLUS Gold
Width    15 cm
Depth    14 cm
Power capacity    650 watts
Characteristics    Overheating protection, overvoltage protection, overvoltage protection, overcurrent protection, short-circuit protection, protection against use without load, fully modular, Automatic Fanspeed Control (AFC), Surge & Inrush Protection (SIP)
The weight of the packaging    2.75 kg
Required frequency    47 - 63 Hz
Height    8.6 cm
Clamping    AC 100-240 V
Contact details for output power    1 x 4 pin power outlet for minimum plug
Contact details for output power    1 x power 24-pin ATX with detachable section of 4 pins
Contact details for output power    2 x 8-pin PCI Express power with detachable 2-pin section
Contact details for output power    2 x current 8-pin + 12V with detachable section of 4 pins
Contact details for output power    3 x 4 pin internal power
Contact details for output power    9 x 15-pin serial ATA power
Cooling system    120 mm fan
Modular cable management    Yes
PSU form factor    ATX
Service and support    Limited warranty - 5 years
Specifications    ATX12V 2.53
Standards followed    CB, RoHS, ErP Ready, EAC, TUV Rheinland
Type of device    Power supply - active power factor correction (PFC) - internal
Output current    + 12V - 54 A
Output current    + 3.3V - 20 A
Output current    + 5V - 20 A
Output current    + 5VSB - 2.5 A
Output current    -12V - 0.3 A
Tension    +3.3, +5, ± 12 V
Weight    2.2 kg
