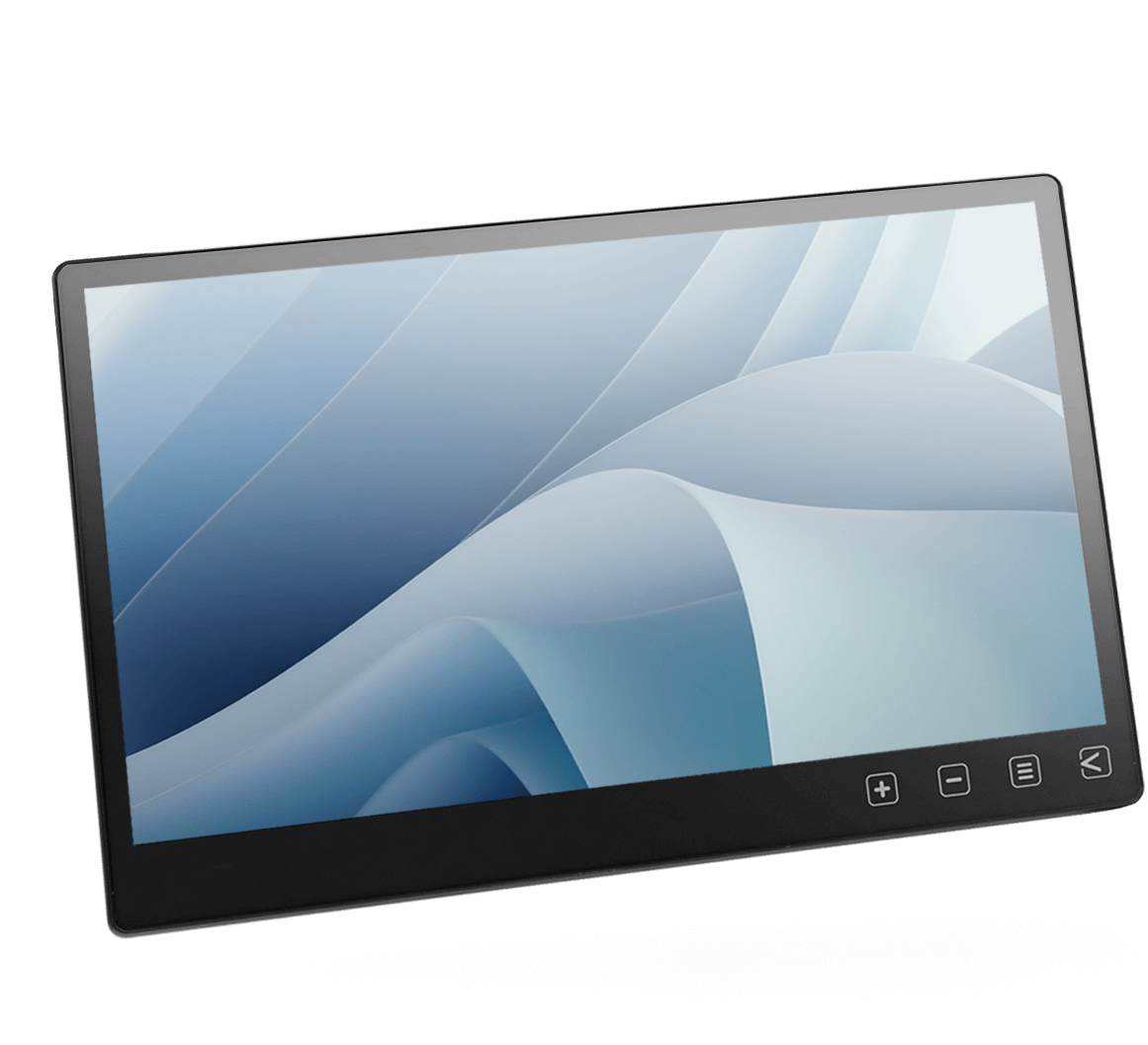

Monitorius GeChic T1 serijos, jutiklinis ekranas, 15.6"/ TV-T151A

GeChic T1 Series Touchscreen Monitor 15.6"/ TV-T151A

Built for various project needs – T1 series touchscreen monitors are slim, compact and suitable to be embedded to industrial machine, automation equipment, commercial space, etc. The T1A15 capacitive touchscreen monitor provides excellent system compatibility, sensitive and intuitive operation. Bring you a high-standard touchscreen solution!

Adopting the industry-leading mainstream capacitive touch technology to provide excellent touch accuracy and sensing speed, T1 series touch monitors deliver touch signals through USB port, and support Windows 11/10 plug & play, 10-points multi-touch recognition without installing any drivers. Not only is it user-friendly, but it is highly compatible with all kinds of industrial computers and industrial control equipment, making it suitable for human-machine interfaces and bringing the smoothest touchscreen experience!

• FHD 1080P: Offer delicate resolution and present lifelike picture
• HDMI: Include HDMI-A standard interface, highly compatible with every device
• USB Type-C: Support DP Alt mode to deliver audio & video, touch signals and power
• 10-Point Multi-Touch: Support Windows 11/ 10 touch gestures
• Touch Screen Sensitivity Settings: Adjust the sensitivity of the touchscreen when touching with different types of materials
• Wet Fingers: Response even with sweaty or wet fingers
• Stylus: Support stylus with conductive rubber or plastic disc larger than 6mm
• Gloves: Use the touchscreen without removing the gloves. Support PVC gloves, latex gloves and winter gloves

To overcome the requirement of configuration under harsh environments, such as factories interrupted by multiple interfering signal sources, or the touch operation platform being far away from the host, the T1 series focuses more on the quality of signal transmission by stabilizing power input and enhancing touch signals. The monitor solves the problem of long-distance transmission across the host and the monitor and makes the monitor easier to be operated all day.

Support 5V 1.6A voltage input. When extending USB power and touch cable for a long distance, use the 12V adapter to improve voltage attenuation!
The T1 series adopts USB gain IC to strengthen the touch signal transmitted via USB, and effectively remedies the signal attenuation due to the extension of the cable length, enabling the USB cable to be extended up to 7.5 meters.

Adopt the new version of IC with high noise immunity to prevent the touch signal from being interrupted by power noise, maintaining the touch accuracy and stability.
The ports are converged on the I/O block at the back of the monitor, including a standard HDMI-A port, which is suitable for universal commercial, industrial computers and laptops, etc. In view of the new generation computers keeping rolling out, the T1 series monitors adopt the USB-C interface, which support both Thunderbolt 3, Thunderbolt 4 audio and video signal input. The industry-leading interface can perfectly adapt to multiple devices.

When using the USB-C port of the T1 monitor to connect to the computer, the USB-A port on the monitor can be used as the USB port of the computer for connecting to a mouse, keyboard, USB flash drive, microphone or web camera, etc. When the monitor is far from the host, the USB external device can be connected to T1 monitor without having to go far!

The front of T1 monitor is fully plat glass, incorporating touch sensitive OSD buttons for easy access to OSD menu configuration. In addition, the rear I/O ports simplifies wiring issues. When building a touchscreen machine or equipment, the monitor can be perfectly integrated into the hardware design to build a one-body formed appearance.

The monitor is designed by solid and reliable structure. The front touch panel is covered with 7H high-hardness glass featuring the advantage of scratch resistance, dirt resistance and easy cleaning; the back is made of light and high-strength aluminum alloy backplane. The monitor integrates the ports and VESA screw mounting holes on the rear I/O block within only 11mm thickness. The monitor is not only with slim and high-tech appearance meeting commercial needs, but also with strong durability in line with industrial requirements, which makes the monitor well-suited for production line, machine room and commercial space.

To maximize the convenience of configuration, the T1 monitor includes VESA 75 screw holes in its compact and slim body, which allows the monitor to fit any space and meet the requirements of installing to machine and mount securely to any kinds of stands.

It is an optional accessory for the T151A monitor. Using SPCC cold-formed steel with black plaint as the main material, T1S2 is not only durable but also classic in look. Use the VESA 75 screw holes to securely install the monitor to the stand at reception desk, counter, or any table to set up a delicate commercial touchscreen display.
