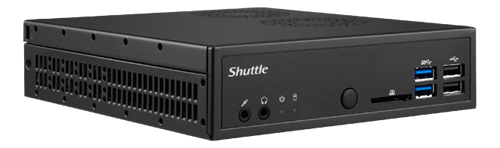

Shuttle XPC slim Barebone DQ170, LGA 1151, 2xSO-DIMM DDR3L-1600, black PIB-DQ170001 / DQ170

Shuttle XPC slim Barebone DQ170, Supports LGA 1151 processors, 2xSO-DIMM DDR3L-1600 slots, incl. VESA bracket, black

Shuttles XPC slim Barebone DQ170 is a robust 1.3-liter Barebone for Intel's LGA1151 processors with the codename "Skylake". You can connect up to three monitors, you have dual GBLAN ports and COM ports. The bar counter includes a VESA mount cof smooth suspension of the computer, which makes it particularly suitable in offices and stores.

• Supports LGA1151 "Skylake" processors, max TDP 65W
• Intel Q170 chipset
• 2xSO-DIMM DDR3L-1600 locations, max 2x16GB RAM
• 1x2.5 "slot
• 1xM.2 2260 BM slot
• 1xHalf-size mini-PCIe for optional WLAN
• SD card reader

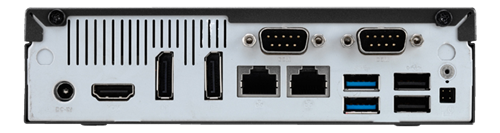

• 4xUSB 3.0, 4xUSB 2.0
• 2xRJ45 GBLAN
• 2xCOM port (RS-232 + RS232 / 422/485)

Dimensions (WxDxH): 165x190x43mm

Number of channels    1
Display Type    No.
Width    19 cm
CPU    No CPU
CPU slot    LGA1151 Socket
CPU upgradability    Upgradeable
Data Link Protocol    Ethernet, Fast Ethernet, Gigabit Ethernet
Depth    16.5 cm
Effect    90 Watts
Characteristics    Not buffered, dual channel memory architecture
Embedded Security    Trusted Platform Module (TPM) Security Chip
ENERGY STAR certified    Yes
Ethernet ports    2 x Gigabit Ethernet
Ethernet controller    Intel i219-LM, I211
Compartment    1 (total) / 1 (free) x internal 2.5 "
Supported Flash memory cards    SD memory card, SDHC memory card, SDXC memory card
form factor    SO DIMM 204 pin
Form factor for product    Slim-PC
features    Wake on LAN (WoL), PXE support, Teaming support
Color    Black
graphics Processor    No graphics
Interface    1 x audio output / headphones - mini-jack (1 on the front)
Interface    1 x microphone - mini-jack (1 on the front)
Interface    1 x HDMI
Interface    2 x LAN (Gigabit Ethernet)
Interface    2x serial
Interface    4 x USB 2.0 (2 on the front, 2 on the back)
Interface    4 x USB 3.0 (2 on the front, 2 on the back)
Interface    2 x DisplayPort
Height    4.3 cm
Included accessories    VESA mounting kit
Installed size    0 MB / 32 GB (max)
slots    1 (total) / 1 (free) x M.2 card - 2260
slots    2 (Total) / 2 (empty)
slots    2 (total) / 2 (free) x SO-DIMM 204 pins
slots    1 (total) / 1 (free) x CPU
slots    1 (total) / 1 (free) x PCIe 2.0 Half Mini Card
Chipset Type    Intel Q170 Express
Operating humidity    10 - 90% (non-condensed)
Maximum temperature during operation    50 ° C
Max. CPU number    1
Supplied cables    Serial ATA cable
Included OS    No operating system
My temperature during operation    0 ° C
Software    Drivers and Utilities
mounting Interface    100 x 100 mm, 75 x 75 mm
Rated voltage    AC 120/230 V (50/60 Hz)
Standards that are followed    C-Tick, BSMI, CB, FCC, RoHS, ETL, ErP Ready, EMI, EMC 2004/108 / EC, LVD 2006/95 / EC, ErP 2009/125 / EC
Standards that are followed    HD audio
Theft / burglary    Security lock slot (cable lock sold separately)
Technique    DDR3L SDRAM - non ECC
Type    1 x SATA
Type    No HDD
Type    No optical drive
Type    Card reader
Type    PC barebone
Type of device    power adapter
Type of control interface    SATA 6Gb / s
Weight    1.3 kg
