Shuttle XPC slim Barebone DS 77U5, Intel Core i5-7200 2.4GHz, Intel HD 620, HDMI / DP, UHD (3840x2160) in 60Hz, black PEB-DS77U501 / DS77U5

Shuttle XPC slim Barebone DS 77U5, Intel Core i5-7200 2.4GHz, Intel HD 620 Graphics, HDMI / DisplayPort, Ultra HD (3840x2160) in 60Hz, black

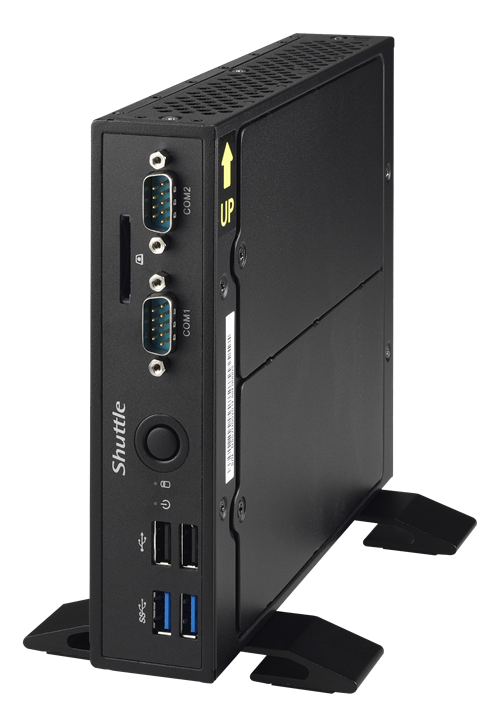

DS 77U5 is a fanless slim PC in a robust 1.3 liter chassis with exceptional connectivity: 2xHDMI, DisplayPort, Double Intel GBLAN, USB 3.0 / 2.0, serial ports, audio, card reader and integrated WLAN. Installation of components is done easily and there is plenty of storage space, you have a 2.5 "SATA / SSD hard disk drive and an M.2 SATA M.2 SATA SSD slot in the 2280 form factor. The built-in Dual Core Intel The "Kaby Lake-U" processor with integrated GPU (HD Graphics 620) allows you to play Ultra HD (3840x21060) material on your connected monitors. Thanks to its redesign and passive cooling architecture, the system is ideally soundless even for non-stop 24/7 use.

• Intel Core i5-7200 "Kaby Lake-U" 2.4GHz
• Intel HD 620 Graphics
• 2x 260-pin SO-DIMM slots, max 2x16GB DDR4-2133MHz
• 1x2.5 ”slot
• 1xM.2 SATA 2280 slot , M.2 supports modules based on PCIe & SATA
• 2xHDMI 1.4b
• 1xDisplayPort 1.2
• 2xUSB 3.0, 4x USB 2.0
• 2xGBLAN
• 802.11n
• 2xCOM ports (RS232 / 422/485)
• SD card reader

Dimensions (WxDxH): 200x165x39.5mm

Number of CPUs    1
Number of channels    1
Number of cores    dual
Display Type    No.
Width    20 cm
Cache / processor    3 MB
CPU    Intel Core i5 7th gene. 7200U / 2.5 GHz
Data Link Protocol    Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Depth    16.5 cm
Effect    65 Watts
Characteristics    Not buffered, dual channel memory architecture
ENERGY STAR certified    Yes
Ethernet ports    2 x Gigabit Ethernet
Ethernet controller    Intel i219-LM, I211
Compartment    1 (total) / 1 (free) x internal 2.5 "
Supported Flash memory cards    SD memory card, SDHC memory card, SDXC memory card
form factor    SO DIMM 260 pin
Form factor for product    Slim-PC
features    Wake on LAN (WoL), PXE support, Teaming support
Color    Black
graphics Processor    Intel HD Graphics 620

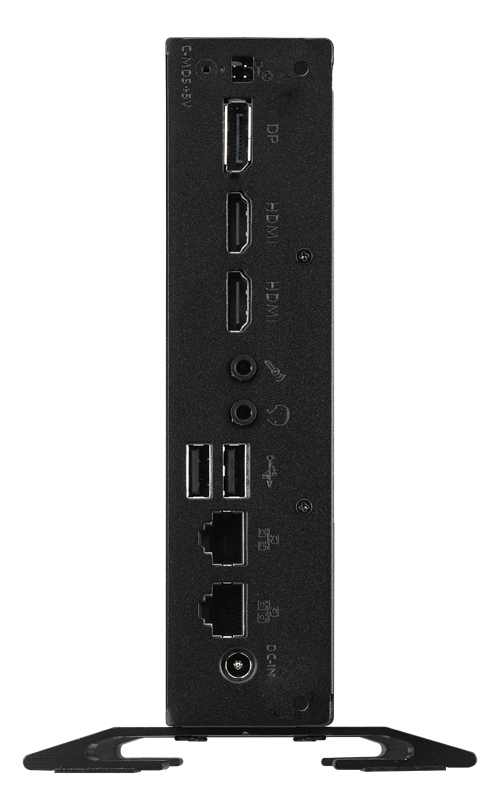

Interface    1 x audio output / headphones - mini jack
Interface    1 x microphone - mini jack
Interface    2 x HDMI
Interface    2 x LAN (Gigabit Ethernet)
Interface    1 x DisplayPort
Interface    2 x USB 3.0 (2 on the front)
Interface    4 x USB 2.0 (2 on the front)
Interface    2 x serial (2 on the front)
Processor main functions    Intel Turbo Boost Technology 2
Height    3.95 cm
Included accessories    VESA mounting kit, 4 screws
Installed size    0 GB / 32 GB (max)
Installed size    L3 cache - 3 MB
slots    1 (total) / 1 (free) x M.2 card - 2280/2260/2242
slots    1 (total) / 0 (free) x M.2 card - 2230
slots    2 (total) / 2 (free) x SO-DIMM 260 pins (1.2 V)
sound Output    Stereo
Maximum number of monitors supported    3
Maximum temperature during operation    40 ° C
Max. CPU number    1
Max. turbo speed    3.1 GHz
Included OS    No operating system
My temperature during operation    0 ° C
Software    Drivers and Utilities
mounting Interface    100 x 100 mm, 75 x 75 mm
Rated voltage    AC 120/230 V (50/60 Hz)
Standards that are followed    C-Tick, BSMI, CB, FCC, RoHS, ETL, ErP Ready, EMI, EMC 2004/108 / EC, LVD 2006/95 / EC, ErP 2009/125 / EC, R & TTE Directive 1999/5 / EC
Standards that are followed    HD audio
power Efficiency    Ultra Low Voltage (ULV)
Support for Wireless LAN    Yes
Theft / burglary    Security lock slot (cable lock sold separately)
Technique    DDR4 SDRAM
Wireless NIC    Realtek RTL8188EE
Type    1 x SATA
Type    No HDD
Type    Card reader
Type    PC barebone
Type of device    power adapter
Type of control interface    SATA 6Gb / s
video Interface    HDMI, DisplayPort
Weight    1.43 kg
