- Aprašymas
-
Detalės

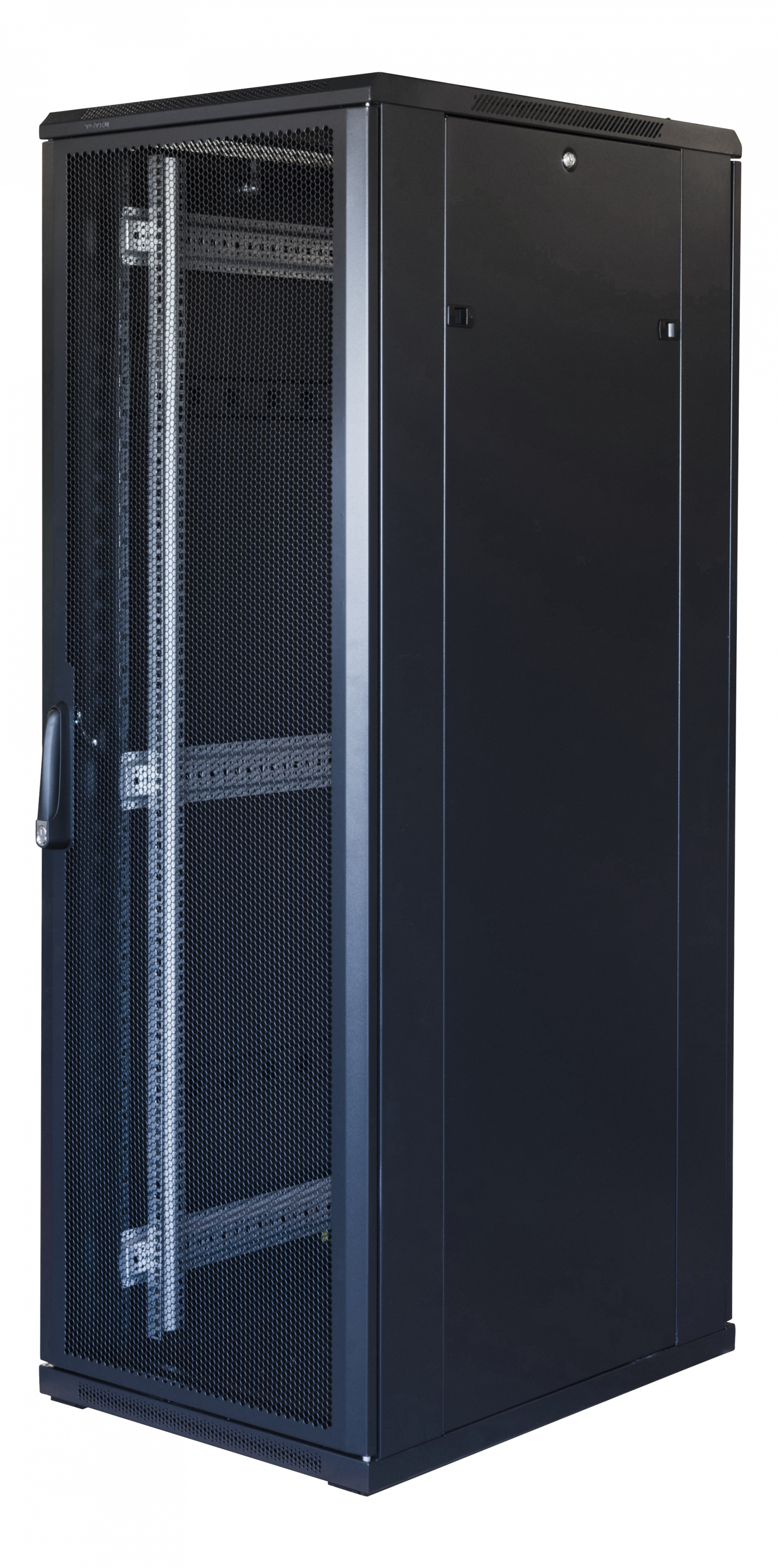

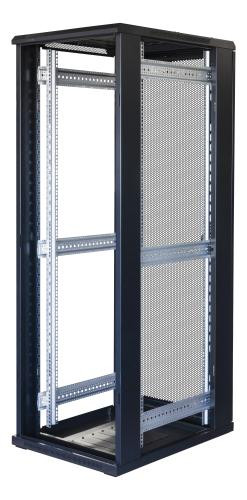

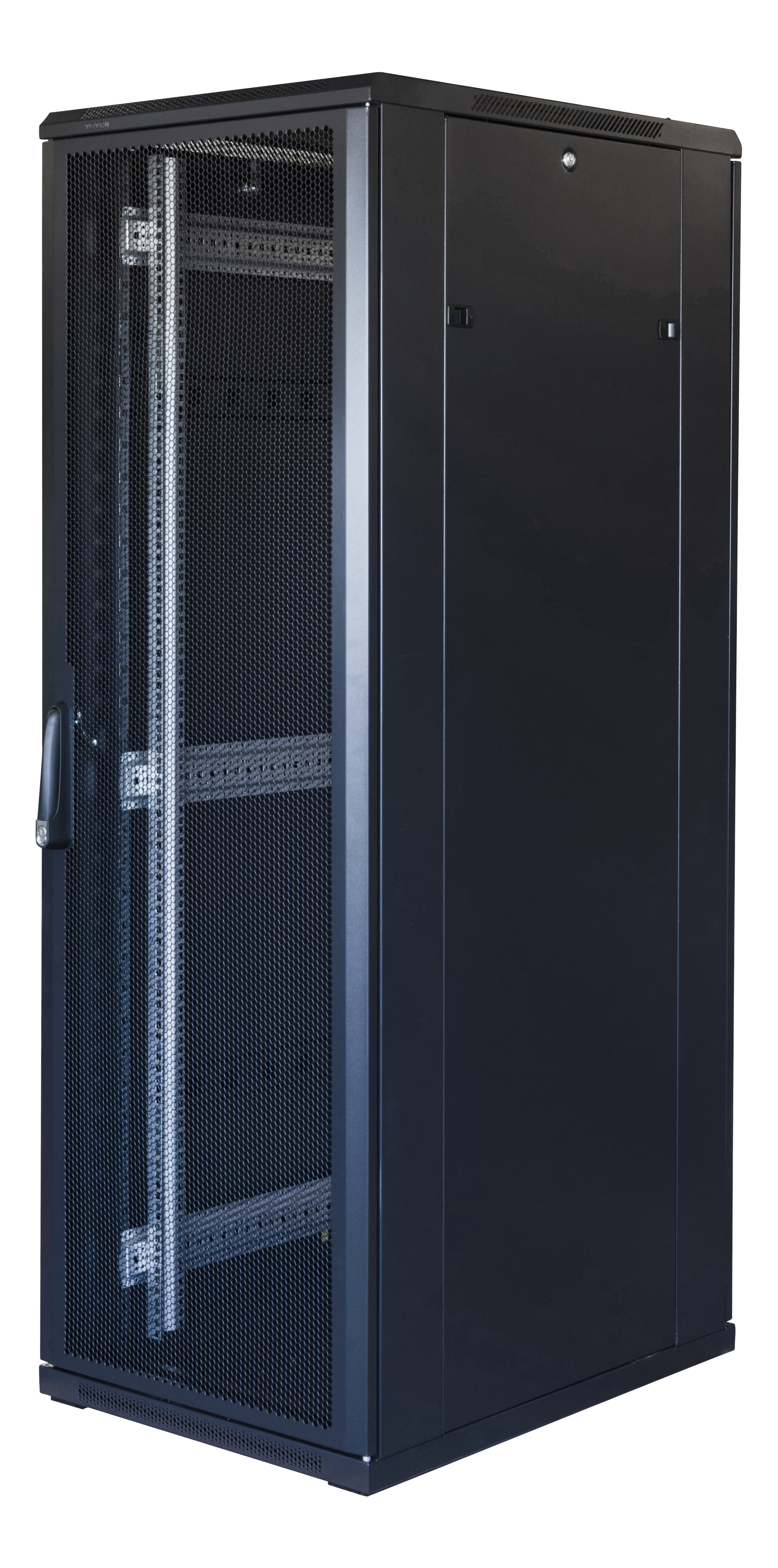

System G, 19" cabinet, 37U, 600x1000, perforated doors, 800kg load, black
- Cabinet with options for both server and network equipment
- Front and back door of perforated metal with 75% ventilation rate
- Distributed loading capacity: 800kg (Static)
- Internal mounting width of 487mm
- Mounting columns of 2mm zinc alloy.
- Outer cover of 1.2mm powder coated SPCC steel
- Protection class: IP20
- 37U
Machine-made cabinet where all parts are cut out with laser, punched with hydraulic turret and welded by robots to achieve absolute precision. All sharp edges are rounded and then assembled and quality assured according to ISO 9001.Product description
The 19 "units are mounted on four columns made of a patented zinc alloy. A material that helps to counteract electrostatic damage, is strong enough for repeated installations and has a dirt-resistant surface structure. The columns are adjustable for- and backwards in increments of 25 millimeters. They also have well-designed holes for cable handling and have a clear Unit-marking that is also visible when the units are mounted.
The roof offers space for the TOTEN Modular Fan System with practical exterior mounting and providing a selectable cooling capacity.
At the bottom, there are step-wise openable cable glands for up to 1000 network cables as well as separate holes for power cables.
All cabinets have right-handed front- and rear doors with locks as well as removable and lockable side panels.
The cabinet comes bundled with feet and is ready for use in five minutes.
Wheels, basket nuts with screw, keys and a mounting tool are included.
Always open the packaging and check that the cabinet is intact before you sign on the waybill. Any transport damage must be recorded/documented and complained about the shipper to the receiver.Specification
Width 60 cm Depth 100 cm Characteristics Lockable front door, lockable rear door, ventilated, perforated rear door, perforated front door, IP20 protection Package dimensions (WxDxH) / weight 67 cm x 110 cm x 186.3 cm Finish Electrostatic powder, galvanized Color Black, RAL 9004 Height 183.3 cm Height (U-format) 37U Product material Cold rolled steel, zinc-aluminum alloy Product type Rack Stand size 19 " Weight limit 800 kg - Papildoma informacija
-
Papildoma informacija
Ilgis, cm 0 Plotis, cm 0 Aukštis, cm 0 Energijos sąnaudų klasė #N/D Gamintojas TOTEN Gamintojo kodas G3.6037.9801 Pagaminimo šalis EAN kodas 733304803449 Vartotojo instrukcija Download Svoris brutto, kg 85.90000000000001 Svoris netto, kg 84.62 Pakuotės aukštis, cm 194.0000 Pakuotės plotis, cm 68.0000 Pakuotės gylis, cm 112.0000 Pakuotės tūris, m3 1.4775 Komentaras verslo klientams #N/D - Apžvalgos
-
