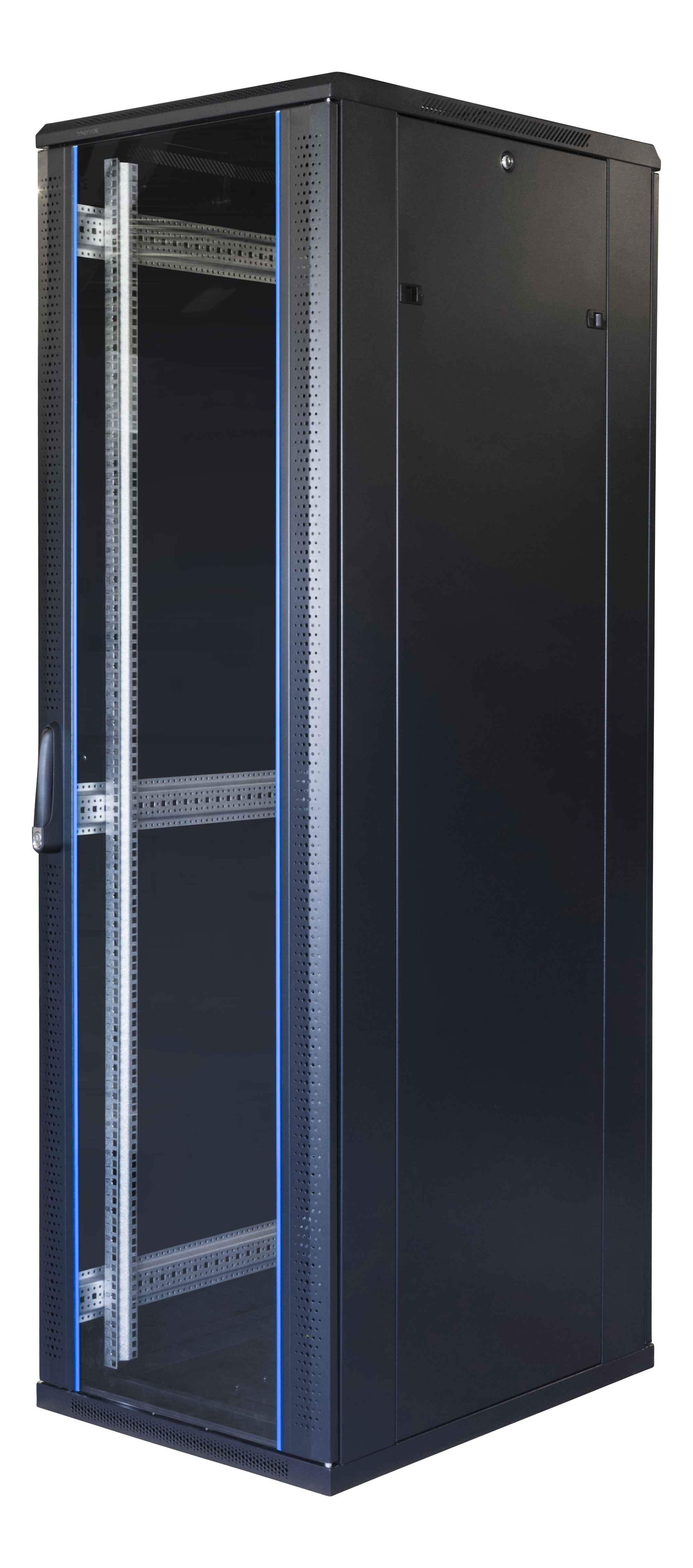

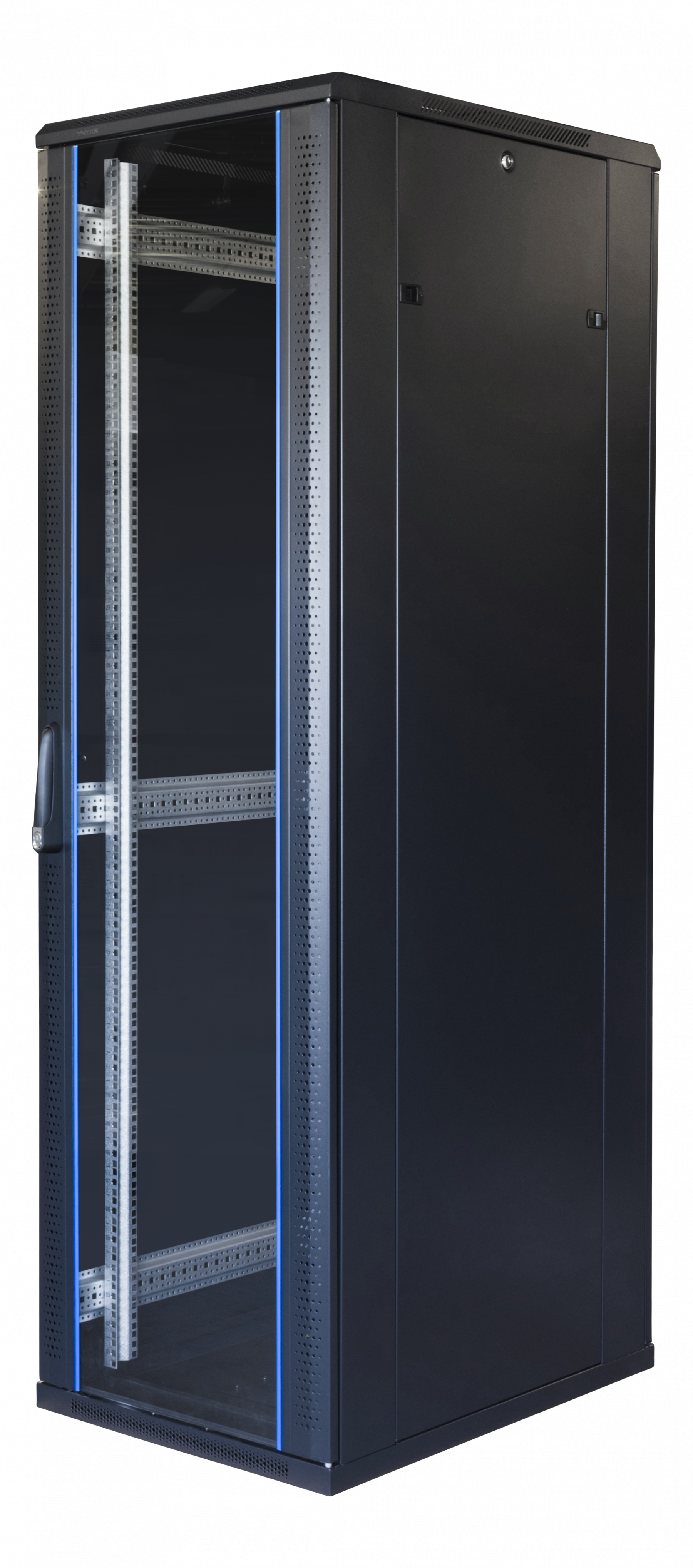

System G, 19" cabinet, 42U, 600x800, glass front door, metal rear door, 800kg load, black
- 42U
- 600x800
- 800kg max load
- Cabinet with options for both server and network equipment
- Front door of tempered glass with ventilated steel frame
- Back door of solid metal
- Distributed loading capacity: 800kg (Static)
- Internal mounting width of 487mm.
Machine-made cabinet where all parts are cut out with laser, punched with hydraulic turret and welded by robots to achieve absolute precision. All sharp edges are rounded and then assembled and quality assured according to ISO 9001.Product description

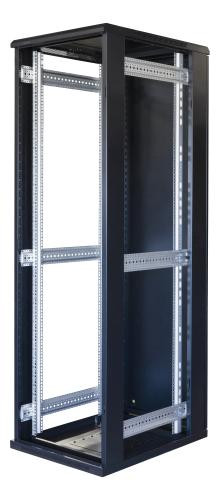

The 19 "units are mounted on four columns made of a patented zinc alloy. A material that helps to counteract electrostatic damage, is strong enough for repeated installations and has a dirt-resistant surface structure. The columns are adjustable for- and backwards in increments of 25 millimeters. They also have well-designed holes for cable handling and have a clear Unit-marking that is also visible when the units are mounted. The roof offers space for the TOTEN Modular Fan System with practical exterior mounting and providing a selectable cooling capacity. At the bottom, there are step-wise openable cable glands for up to 1000 network cables as well as separate holes for power cables.
Info / Certificate
Datasheet: - Papildoma informacija
-
Papildoma informacija
Ilgis, cm 0 Plotis, cm 0 Aukštis, cm 0 Energijos sąnaudų klasė #N/D Gamintojas TOTEN Gamintojo kodas G6.6842.9001 Pagaminimo šalis EAN kodas 733304802441 Vartotojo instrukcija Download Svoris brutto, kg 96.3 Svoris netto, kg 94.59999999999999 Pakuotės aukštis, cm 219.0000 Pakuotės plotis, cm 68.0000 Pakuotės gylis, cm 92.0000 Pakuotės tūris, m3 1.3701 Komentaras verslo klientams #N/D - Apžvalgos
-
