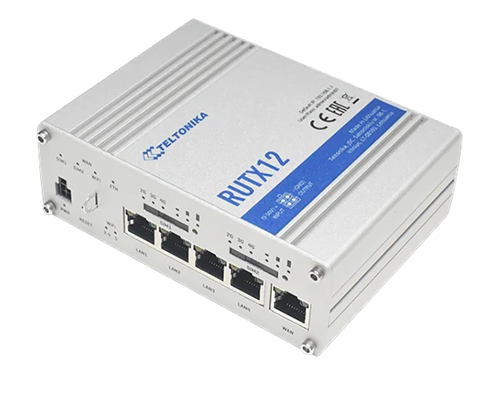

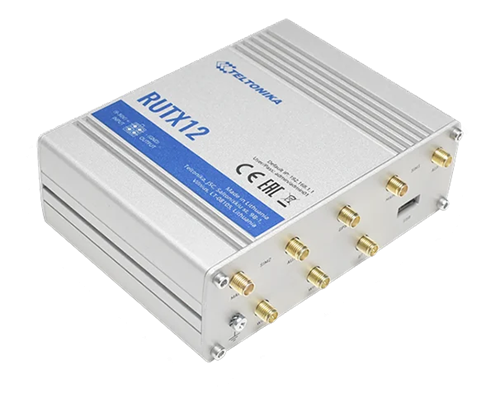

Teltonika maršrutizatorius RUTX12, pilkas / TKA-RUTX12

Teltonika RUTX12, gray

Powerful Dual LTE Cat 6 router is designed for mission-critical applications. Two simultaneously operating LTE CAT 6 modems can provide speeds up to 600 Mbps with load balancing function. This makes this device replaceable in applications where losing the connection is not an option.

• Instant failover switching
• Teltonika Remote Management System compatible
• 5 x Gigabit Ethernet with speeds up to 1000 Mbps
• Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
• Easy to use, secure, with feature-rich OpenWrt-based operating systems
• Two LTE modules operating simultaneously can provide speeds of up to 600 Mbps

Dimensions: (WxDxH) 95 x 132 x 44 mm

Weight: 540 g

Connection technology    Wireless, wired
Number of antennas    8
Antenna    Externally detachable
Width    13.2 cm
Cellular protocol    WCDMA, LTE
Data link protocol    Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11g, IEEE 802.11n, Modbus, Bluetooth 4.0, IEEE 802.11ac Wave 2
Depth    9.5 cm
Energy consumption during operation    22 Watt
Expansion card slots    2 (total) / 2 (free) x SIM
Flash memory    256 MB
Frequency band    2.4 GHz / 5GHz
Features    Firewall protection, NAT support, VPN support, load balancing, wake on LAN (WOL), auto-uplink (auto MDI / MDI-X), Email notification, MAC address filtering, firmware can be updated, support for Wi-Fi Multimedia , Quality of Service (QoS), IPSec NAT-Traversal (NAT-T), Dynamic Multipoint VPN (DMVPN), SMS alarm, port forwarding, reset button, DHCP relay, SNMP trap, GRE tunneling, labeled VLAN, SYN Flooding , MU-MIMO technology, system log, passive PoE support, Web Filtering, DMZ support, port-based VLAN, blacklist, whitelist, bridge mode, DDoS Protection, aluminum housing
Interface    1 x DI
Interface    1 x DO
Interface    Antenna: 3 x RP-SMA
Interface    Antenna: 5 x SMA
Interface    LAN: 1 x 10Base-T / 100Base-TX / 1000Base-T (PoE) - RJ-45
Interface    LAN: 3 x 10Base-T / 100Base-TX / 1000Base-T - RJ-45
Interface    USB 2.0: 1 x 4-pin USB type A
Interface    WAN / LAN: 1 x 10Base-T / 100Base-TX / 1000Base-T - RJ-45
Height    4.4 cm
Built-in units    LED panel, GPS, GLONASS, Beidou, Galileo, QZSS
Included accessories    GPS antenna, 2 x WiFi antennas, SIM card output device, Bluetooth antenna, 4 x LTE antennas
Communication technology    Bluetooth Low Energy (LE)
Compatible with Internet of Things (IoT)    Yes
Encryption algorithm    DES, Triple DES, RC2, CAST, TLS, SSL 3.0, PEAP, TKIP, AES-CCMP, WPA2-PSK, WPA2-Enterprise, IKEv2, 256-bit AES-CBC, 128-bit AES-CBC, 192-bit AES -CBC, IKEv1
Humidity during operation    10 - 90% (non-condensed)
Maximum temperature during operation    75 ° C
Maximum transfer speed    600 Mbps
Supplied cables    1 x network cable - 1.5 m
Included Olympics    RutOS
My operating temperature    -40 ° C
Model    Desktop model
Power supply    External power adapter
Network / transport protocol    TCP / IP, PPTP, UDP / IP, L2TP, NTP, ICMP / IP, IPSec, PPPoE, ARP, SMTP, FTP, DHCP, DNS, DDNS, HTTP, HTTPs, IPv4, IPv6
Network protocol    RIP-1, RIP-2, BGP, EIGRP, VRRP, NHRP, OSPFv2, static IP routing, GRE
Processor    1 x ARM Cortex-A7 717 MHz
Protocol for remote administration    SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2, CLI, TR-069, JSON-RPC, Modbus, NTP
FRAME    256 MB DDR3 SDRAM
Standards followed    IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.3af, IEEE 802.11g, IEEE 802.11e, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, UPnP, Bluetooth 4.0, IEEE WE2.E2.22, IEEE 802.11r
Status indicators    Port status, power supply, signal strength, WAN, 5 GHz, 2.4 GHz
Type    Wireless mobile modem
Type of device    Wireless router - 5-port switch (built-in)
Verification method    Secure Shell (SSH), RADIUS, X.509 certificate, Extended Service Set ID (ESSID)
Weight    540 g
VoIP protocol    H.323, SIP
