AUDIO EXTENDER KIT

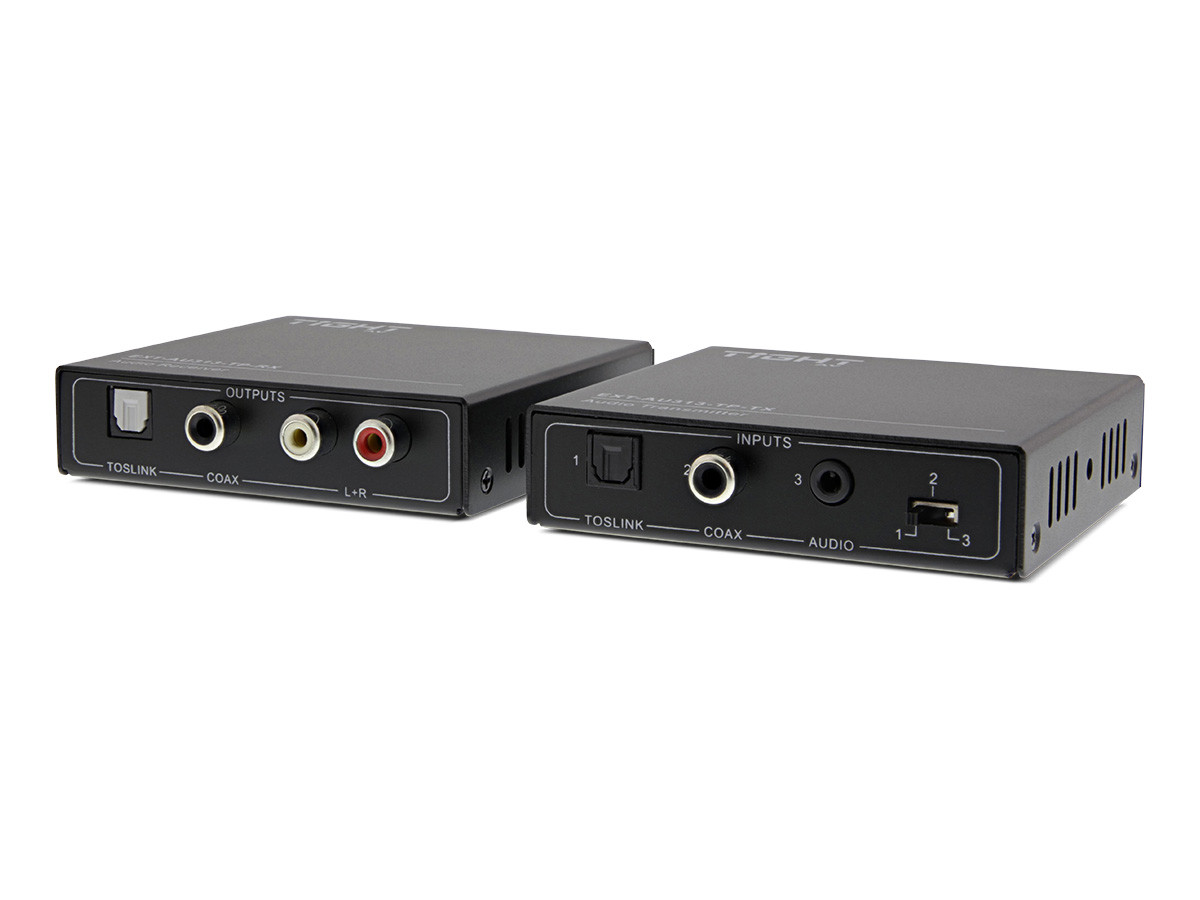

Model name: EXT-AU313-TPAUDIO EXTENDER KIT FOR ANALOG OR DIGITAL AUDIOThe EXT-AU313-TP is an audio extender set that includes one transmitter and one receiver. It is designed to extend a stereo analog audio signal up to 170 m and extend an Optical/Coax digital audio up to 290 m via a CATx cable. The EXT-AU313-TP is ideal to extend unbalanced or digital audio from a source to an audio system located far from the source.
KEY FEATURES:
• Three selectable audio inputs: Optical, Coax and Analog Stereo.
• Audio will be outputted simultaneous to the three different outputs: Optical, Coax and Analog Stereo.
• Convert audio signals from digital into analog, or analog into digital.
• Supply power only at the receiver end -the transmitter is powered over the CATx cable (PoC).
• The transmission distance of analog stereo audio can up to 170 m, and the digital Optical/Coax audio up to 290m over an CATx cable.Specifications:
Transmitter
Input
(1) TOSLINK,(1) COAX,(1) AUDIO (Stereo)
Input Connector
(1) Toslink, (1) Black RCA, (1) 3.5mm jack
Output
(1) TP OUT
Output Connector
(1) RJ45
Control
(1) FIRMWARE
Control Connector
(1) Micro USB
Receiver
Input
(1) TP IN
Input Connector
(1) RJ45
Output
(1) TOSLINK,(1) COAX,(1) L+R (RCA)
Output Connector
(1) Toslink, (1) Black RCA, (1) Red & White RCA
Control
(1) FIRMWARE
Control Connector
(1) Micro USB
General
Input Audio Format
TOSLINK: PCM, Dolby, DTS
COAX: PCM, Dolby, DTS
AUDIO: Stereo
Output Audio Format
TOSLINK: PCM, Dolby, DTS
COAX: PCM, Dolby, DTS
L+R: Stereo
Sound Channel
TOSLINK: 2.0~7.1
COAX: 2.0~7.1
Frequency Response
All audio: 20Hz ~ 20kHz, ±3dB
Sample Rate
TOSLINK:48k/96k/192k 16bit/18bit/24bit
COAX: 48k/96k/192k 16bit/18bit/24bit
Transmission Distance
Stereo audio: Up to 170m (CATx)
TOSLINK/COAX audio: Up to 290m (CATx)
Power Consumption
2.5W (max)
Operation Temperature
0 ~ +40℃
Storage Temperature
-10 ~ +50℃
Relative Humidity
0% ~ 90%
External Power Supply
Input: 100VAC~240VAC, 50/60Hz; Output:12VDC 1A
Dimension (W*H*D)
88mm x 21.5mm x 80mm
Net Weight (g)
Transmitter: 110g,
Receiver: 120g
- Papildoma informacija
-
Papildoma informacija
Ilgis, cm 0 Plotis, cm 0 Aukštis, cm 0 Energijos sąnaudų klasė #N/D Gamintojas TIGHT AV Gamintojo kodas EXT-AU313-TP Pagaminimo šalis EAN kodas 570647013358 Vartotojo instrukcija Download Svoris brutto, kg 0.5 Svoris netto, kg 0.23 Pakuotės aukštis, cm 5.0000 Pakuotės plotis, cm 10.0000 Pakuotės gylis, cm 15.0000 Pakuotės tūris, m3 0 Komentaras verslo klientams #N/D - Apžvalgos
-
