14X10 DSP WITH GPIO
Model name: DSP-AEC-1410DSP-AEC-1410 | AUDIO DSP WITH AEC, 12-IN/8-OUT AND 2x2 USBAdvanced DSP with freely assigned processing blocks, GPIO and camera control

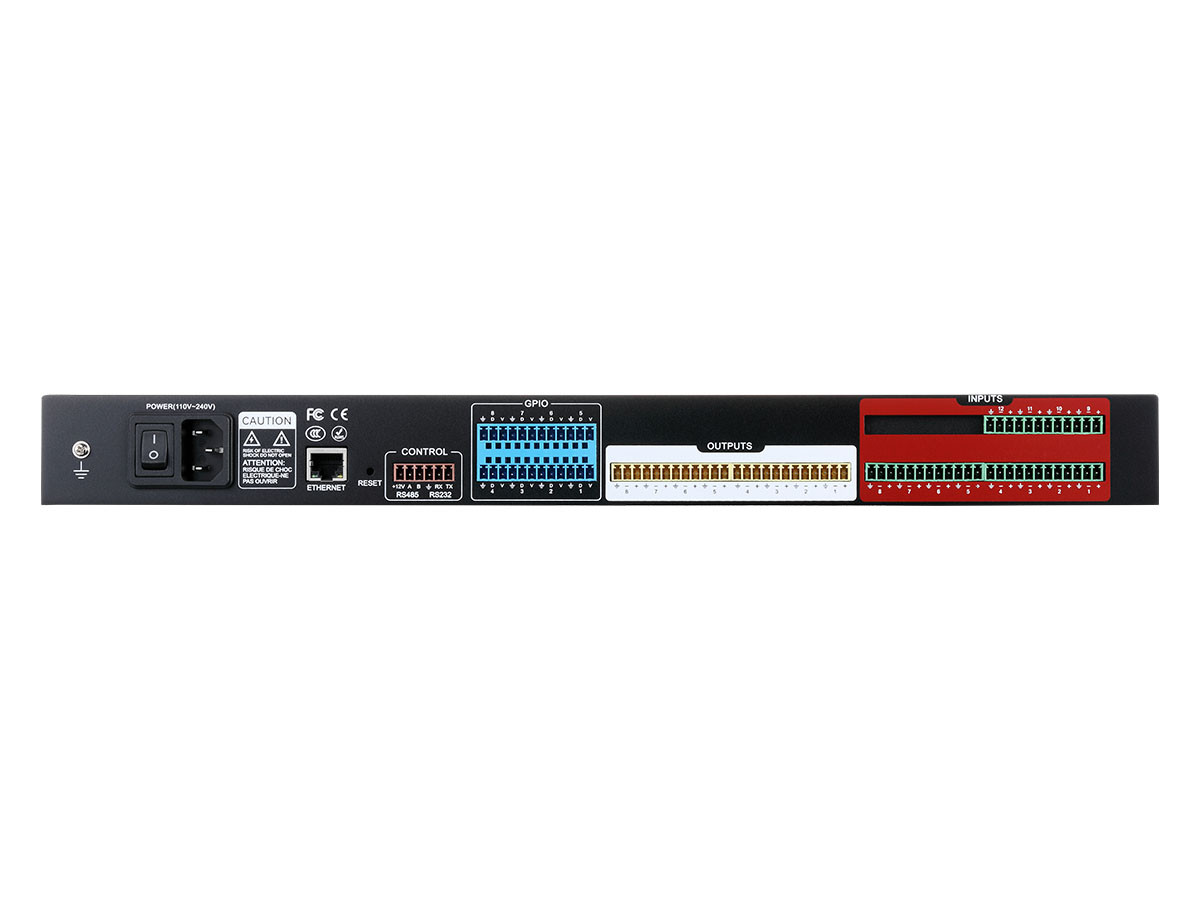

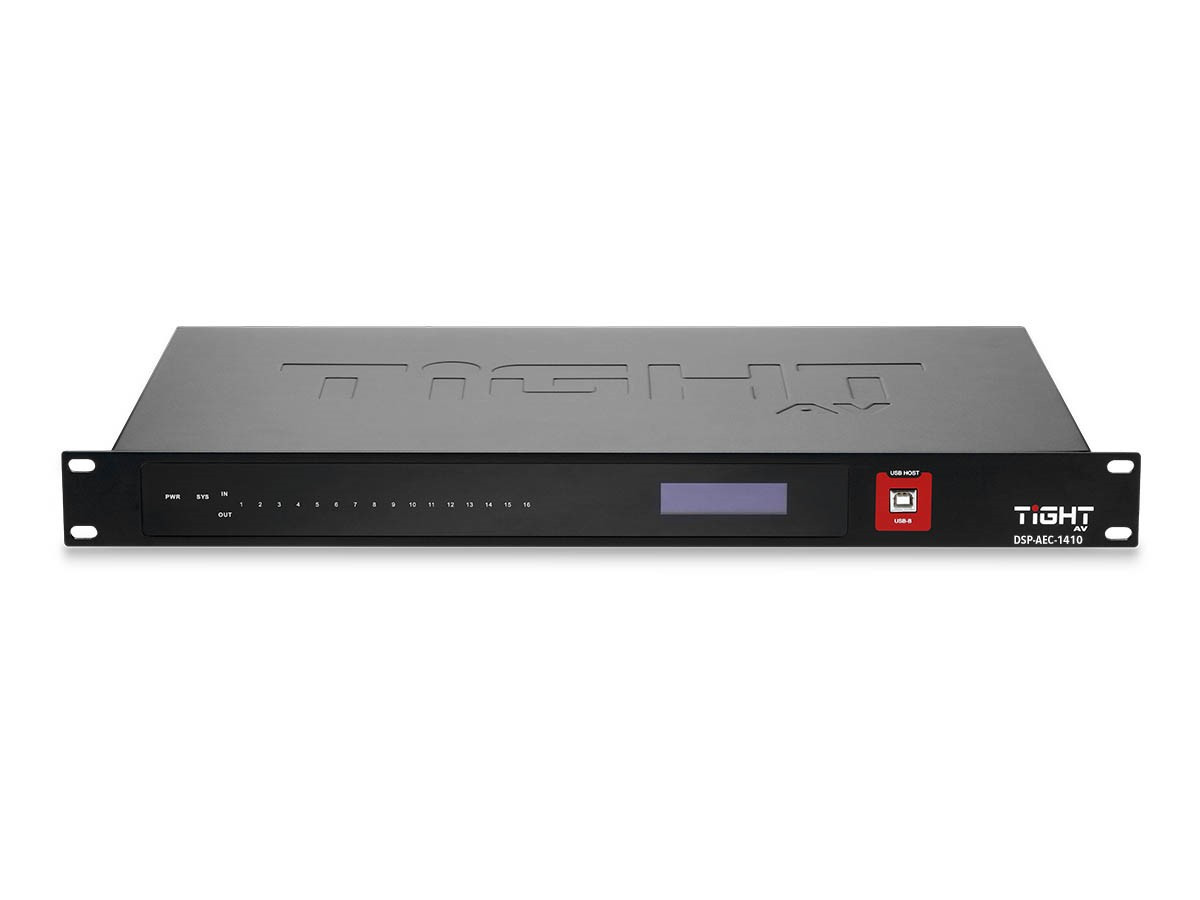

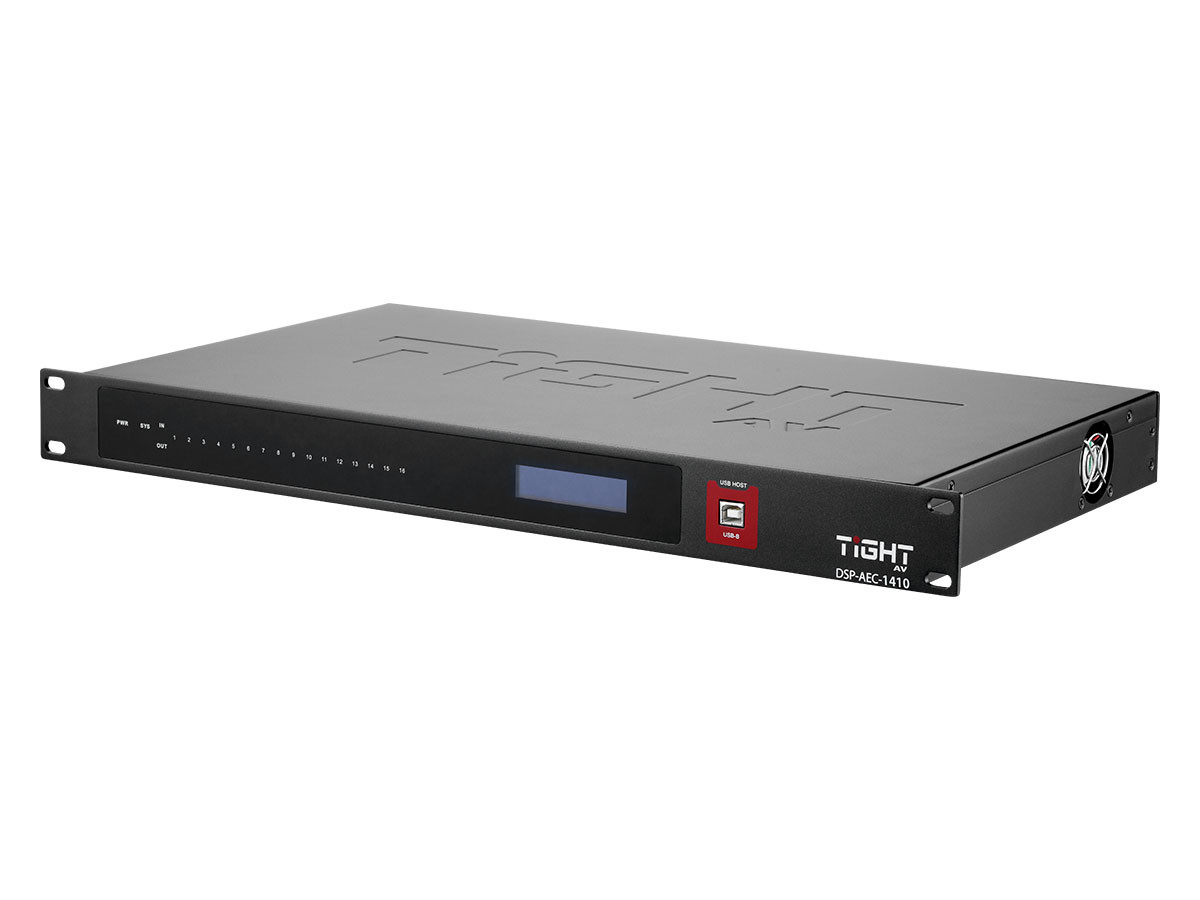

Sometimes you need to go big. The DSP-AEC-1410 offers 12 analog ins and 8 analog outs, as well as 8 GPIO ports plus RS232 and RS485 control. The front panel USB port can operate as a two-channel USB record/playback channel, giving the unit a total of 14 inputs and 10 outputs.
As the name suggests, the DSP-AEC-1410 is equipped with advanced acoustic echo cancellation, making it ideal as a centerpiece in web conference installations to eliminate unwanted feedback. Other DSP facilities include EQ, dynamics, mixer, and matrix, which can be freely configured via five processing blocks per channel. PTZ camera control is also supported, allowing you to choose which channel’s thresholds should trigger the camera’s presets.
For critical applications, two parallel-wired 1410s can be set up in Redundancy Mode, for automatic changeover in case of power or component failure.
As an option, programmable control panels (sold separately) offer the end user hands-on control to parameters set by the integrator.Specifications:
DSP Processor
Type
ADI SHARC 21489
DSP Handling Capacity
400 MIPS, 1,6 GFLOPS
Input
Inputs
(12) Analog Mic/line Audio
Input Connector
(3) 12-pin Green Terminal Blocks
Phantom Power
48V (Max 10mA), selectable per input
Output
Outputs
(8) Analog Line Audio
Output Connector
(2) 12-pin Yellow Terminal Blocks
Interface
Ethernet
(1) LAN, 10/100/1000 Base-T Ethernet
Ethernet Connector
(2) RJ45
USB
(1) USB 2.0, Type B
Serial
(1) RS-232, (1) RS-485
Serial Connector
(1) 6-pin Brown Terminal Blocks
GPIO
(8) GPIO
GPIO Connector
(2) 12-pin Blue Terminal Blocks
Audio Performance
Input Gain
0 - 48dB in 3dB steps
Frequency Response
±0.2dB (20Hz~20KHz)
Maximum Level
+18dBu
THD + Noise
0.003%@4dBu
Input Dynamic Range
110dB
Output Dynamic Range
112dB
Background Noise (A-weighted)
-91dBb
Common Mode Rejection Ratio @60Hz
80dB
Channel Isolation @1KHz
108 dB
Input Impedance (Balanced)
9.4kΩ
Output Impedance (Balanced)
102Ω
System Latency
<3ms
Sample Rate
48 kHz
Bit Depth
24 Bit
General
Power requirements
AC110~240V 50Hz-60Hz
Maximum Power Consumption
<40W
Rack Space
Half Rack
Dimensions (W x D x H)
482mm x 264mm x 44mm
Shipping Weight
3kg
Operating Temperature
0 ~ +40℃
Storage Temperature
-25 ~ +70℃
Relative Humility
10% - 90%
Compliance
Compliance
FCC, CE
Environmental Compliance
RoHS, REACH, WEEE
