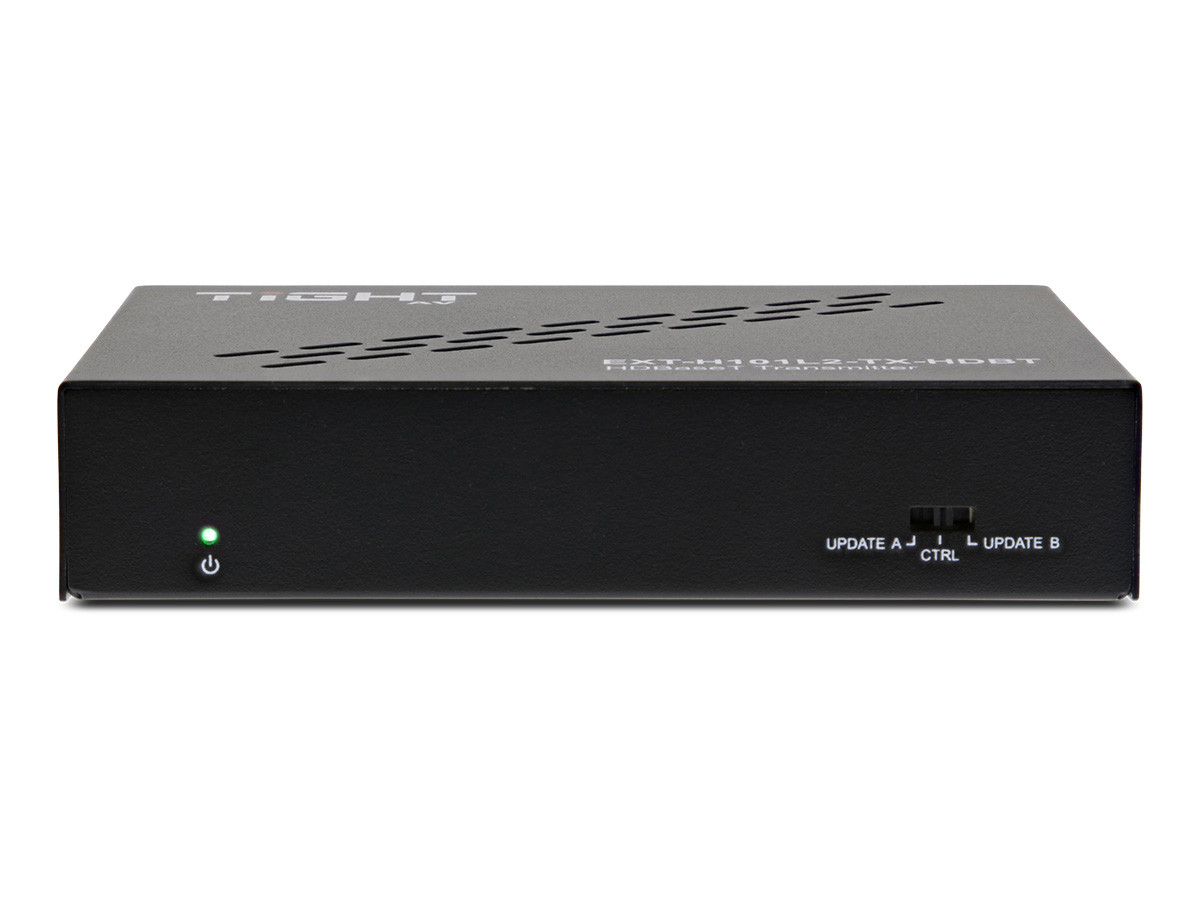

COMPACT 18G HDMI 2.0 OVER HDBT TRANSMITTERThe EXT-H101L2-TX-HDBT is a fully 18G HDMI 2.0b compliant HDBaseT transmitter. It extends HDMI audio, video as well as control up to 70m using a single Category 6A solid core cable (4K 60Hz 40m / 1080P 60Hz 70m) to a compatible HDBaseT receiver. Supports HDMI 2.0b, HDR and HDCP 2.2.
The EXT-H101L2-TX-HDBT provide crystal clear HDR and full bandwidth 4K video in a compact formfactor. Support for bi-directional PoC allows for easy installation by applying power to either the transmitter or the receiver end.Features:
- Compact formfactor
- Supports HDMI 2.0b, 4K@60 4:4:4, HDR, HDCP 2.2.
- 4K HDMI signal extension up to 40m, and 1080p is 70m.
- Supports CEC, IR, and RS232 pass-through.
- Supports bi-directional 24V PoC for simplified installations.
Specifications:
Model
Transmitter
Input
HDMI IN
Output
HDBT OUT
Control Ports
IR IN, IR OUT, RS232
General
Transmission Mode & Distance
HDBaseT: 1080p ≦ 70m; 4Kx2K ≦ 40m
Resolution
Up to 4K×2K@60Hz 4:4:4
Bandwidth
18Gbps
HDMI Standard
HDMI2.0b & HDCP2.2
Power Consumption
8W(Max)
Temperature
-10 ℃~ 50℃
Humidity
0% ~ 90%
Power supply
Input: 100VAC~240VAC, 50/60Hz; Output: 24VDC 1.25A
Dimension(W*H*D)
115mm x 84mm x 24mm
Net Weight(g)
230g
- Papildoma informacija
-
Papildoma informacija
Ilgis, cm 0 Plotis, cm 0 Aukštis, cm 0 Energijos sąnaudų klasė #N/D Gamintojas TIGHT AV Gamintojo kodas EXT-H101L2-TX-HDBT Pagaminimo šalis EAN kodas 570647013360 Vartotojo instrukcija Download Svoris brutto, kg 0.9 Svoris netto, kg 0.23 Pakuotės aukštis, cm 5.0000 Pakuotės plotis, cm 15.0000 Pakuotės gylis, cm 20.0000 Pakuotės tūris, m3 0 Komentaras verslo klientams #N/D - Apžvalgos
-
