6X6 DSP

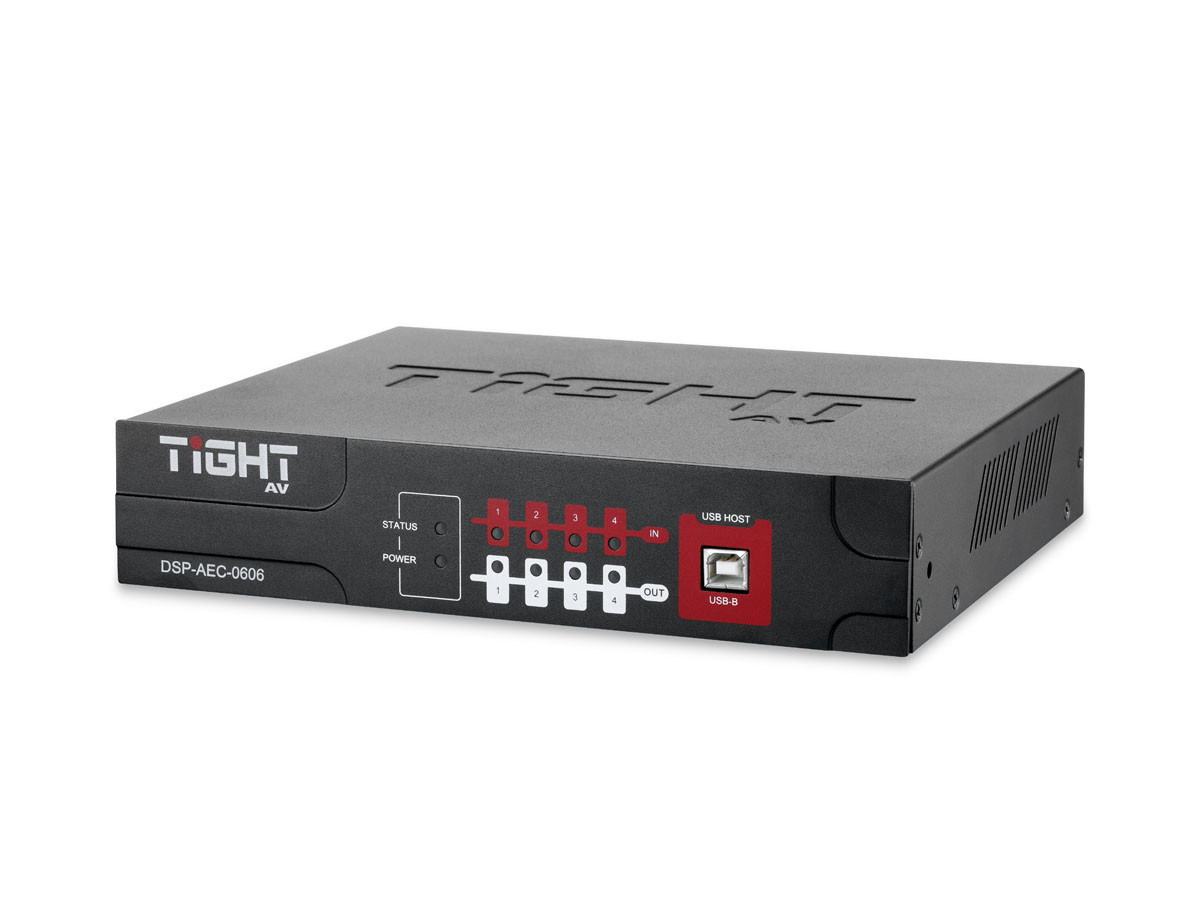

Model name: DSP-AEC-0606AUDIO DSP WITH AEC, 4-IN/4-OUT ANALOG AND 2x2 USBSmall-format, cost-efficient DSP for smaller installations.
Need a small-format, cost-efficient, no-nonsense DSP for those lighter installations? Our DSP-AEC-0606 should have you covered! Featuring 4x4 channels of balanced audio, plus a 2x2 USB interface for computer recording and playback, the 0606 should be a perfect fit for the job.For those of you familiar with our DSP-AEC-1010-DA, the 0606 is basically the same model but without the 4x4 Dante connectivity. This leaves the 0606 with the following features:
- 4 x balanced analog in and out, with integrated mic pre and +48V
- 2x2 USB (with processing) for recording and playback
- RS232 and RS485 control ports
- Dual Ethernet with PoE capabilityAs the name suggests, the DSP-AEC-0606 is equipped with advanced acoustic echo cancellation, making it ideal as a centerpiece in web conference installations to eliminate unwanted feedback. Other DSP facilities include EQ, dynamics, mixer, and matrix, all easily configured and controlled from an intuitive GUI. As an option, programmable control panels (sold separately) offer the end user hands-on control to parameters set by the integrator.
Specifications:
DSP Processor
Type
ADI SHARC 21489
DSP Handling Capacity
400 MIPS, 1,6 GFLOPS

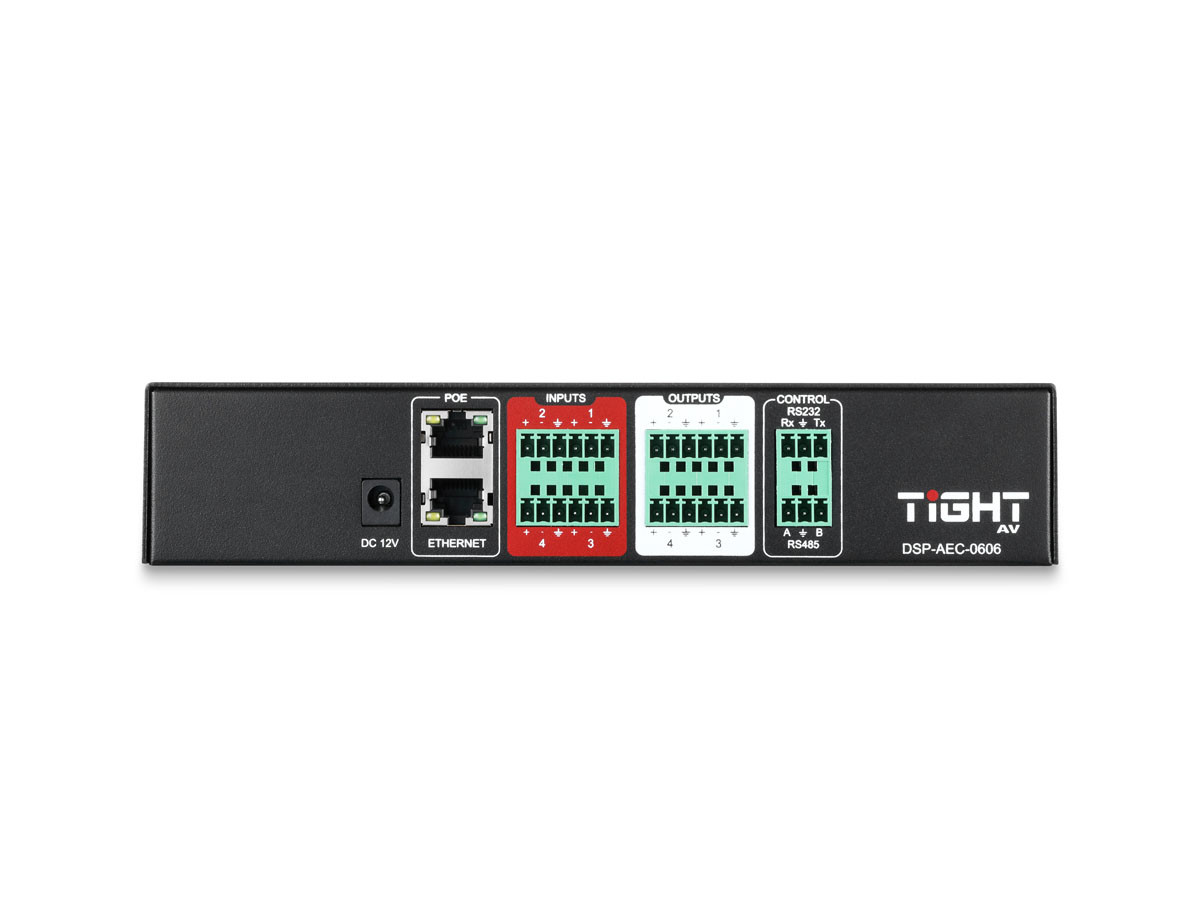

Input
Inputs
(4) Analog Mic/line Audio
Input Connector
(2) 6-pin Green Terminal Blocks
Phantom Power
48V (Max 10mA), selectable per input
Output
Outputs
(4) Analog Line Audio
Output Connector
(2) 6-pin Green Terminal Blocks
Interface
Ethernet
LAN/Dante, 10/100/1000 Base-T Ethernet
Ethernet Connector
(2) RJ45
PoE
802.3af
USB
(1) USB 2.0, Type B
Serial
(1) RS-232, (1) RS-485
Serial Connector
(2) 3-pin Green Terminal Blocks
Audio Performance
Input Gain
0 - 48dB in 6dB steps
Frequency Response
±0.5dB (20Hz~20KHz)
Maximum Level
+18dBu
THD + Noise
0.003%@4dBu
Input Dynamic Range
110dB
Output Dynamic Range
112dB
Background Noise (A-weighted)
-91dBb
Common Mode Rejection Ratio @60Hz
80dB
Channel Isolation @1KHz
108 dB
Input Impedance (Balanced)
5.6kΩ
Output Impedance (Balanced)
102Ω
System Latency
<3ms
Sample Rate
48 kHz
Bit Depth
24 Bit
General
Power requirements
PoE 802.3af or 12VDC
Power adapter
AC110~240V 5Hz-60Hz, 12VDC / 2A output
Maximum Power Consumption
10W
Rack Space
Half Rack
Dimensions with terminal blocks (W x D x H)
215mm x 192mm x 44mm
Shipping Weight
2kg
Operating Temperature
0 ~ +40℃
Storage Temperature
-25 ~ +70℃
Relative Humility
10% - 90%
Compliance
Compliance
FCC, CE
Environmental Compliance
RoHS, REACH, WEEE
- Additional Information
-
Additional Information
Length, cm 0 Width, cm 0 Height, cm 0 Energijos sąnaudų klasė #N/D Manufacturer TIGHT AV Manufacturer's code DSP-AEC-0606 Country of manufacture EAN code 202312080000 User's manual Download Gross weight, kg 2 Net weight, kg 1.9 Package Height, cm 4.4000 Package Width, cm 21.5000 Package Depth, cm 19.2000 Package volume, m3 0.0011 Comment for B2B customer #N/D - Reviews
-
