HDMI DE-EMBEDDER

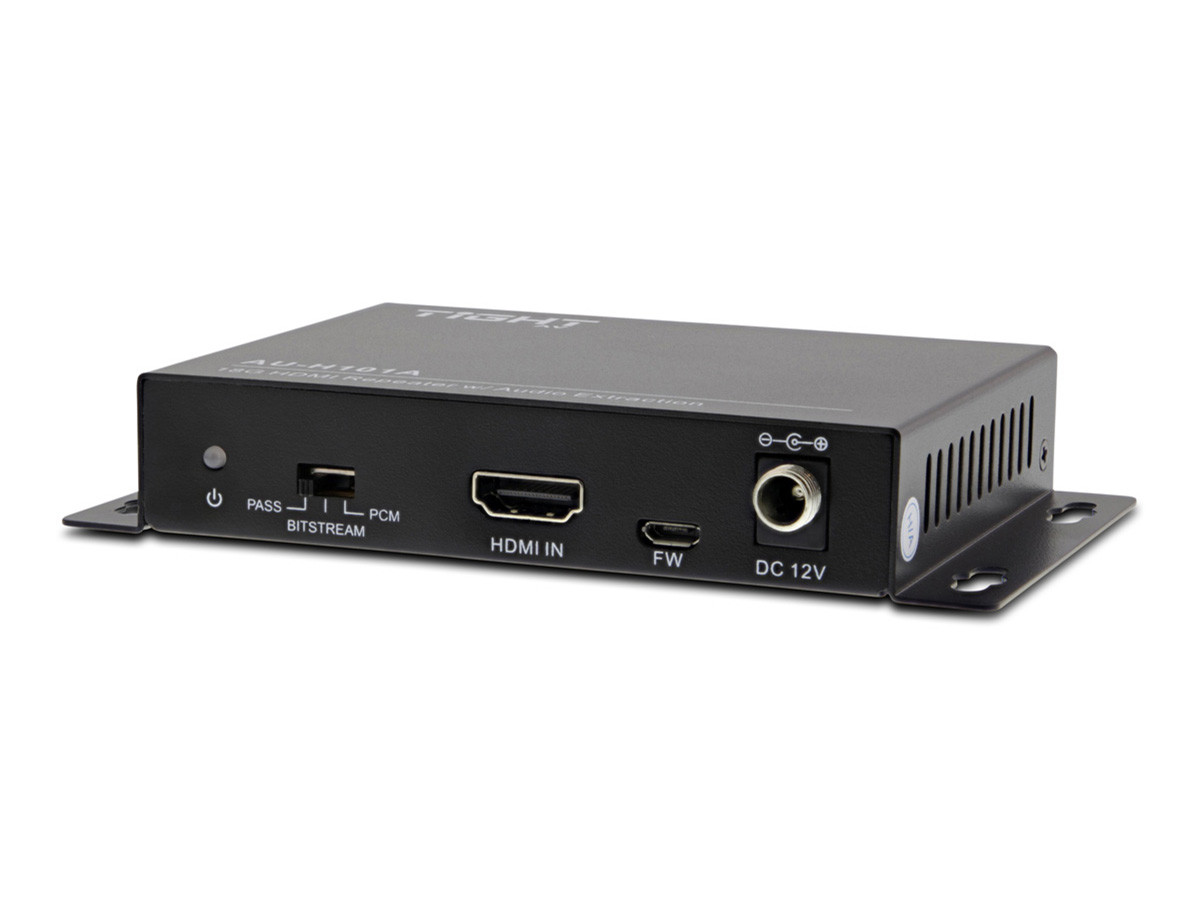

Model name: AU-H101A18G HDMI 2.0 REPEATER WITH AUDIO DE-EMBEDDINGThe AU-H101A is a small-size HDMI 2.0 audio de-embedder with 1 HDMI input, 1 HDMI output, and three different types of audio outputs. It is designed to extract audio from a HDMI signal via stereo balanced L/R audio, analog RCA, and coaxial digital audio output.
It also features an HDMI equalizer to ensure full HDMI signal integrity is maintained. The AU-H101A can compensate for poor source signals or low-quality cabling at the end of a long cable run.
EDID and CEC pass-through ensures that the source video is at the optimal resolution for the display and can be controlled by CEC from source.KEY FEATURES:
• De-embeds analog audio and coaxial digital audio from an HDMI signal.
• HDMI equalization.
• Three selectable audio modes.
• 4K@60Hz (4:4:4) and data rates up to 18 Gbps.
• HDMI 2.0 and HDR support.
• HDCP 2.2/1.4 support.
• EDID and CEC pass-through.Specifications:
Video

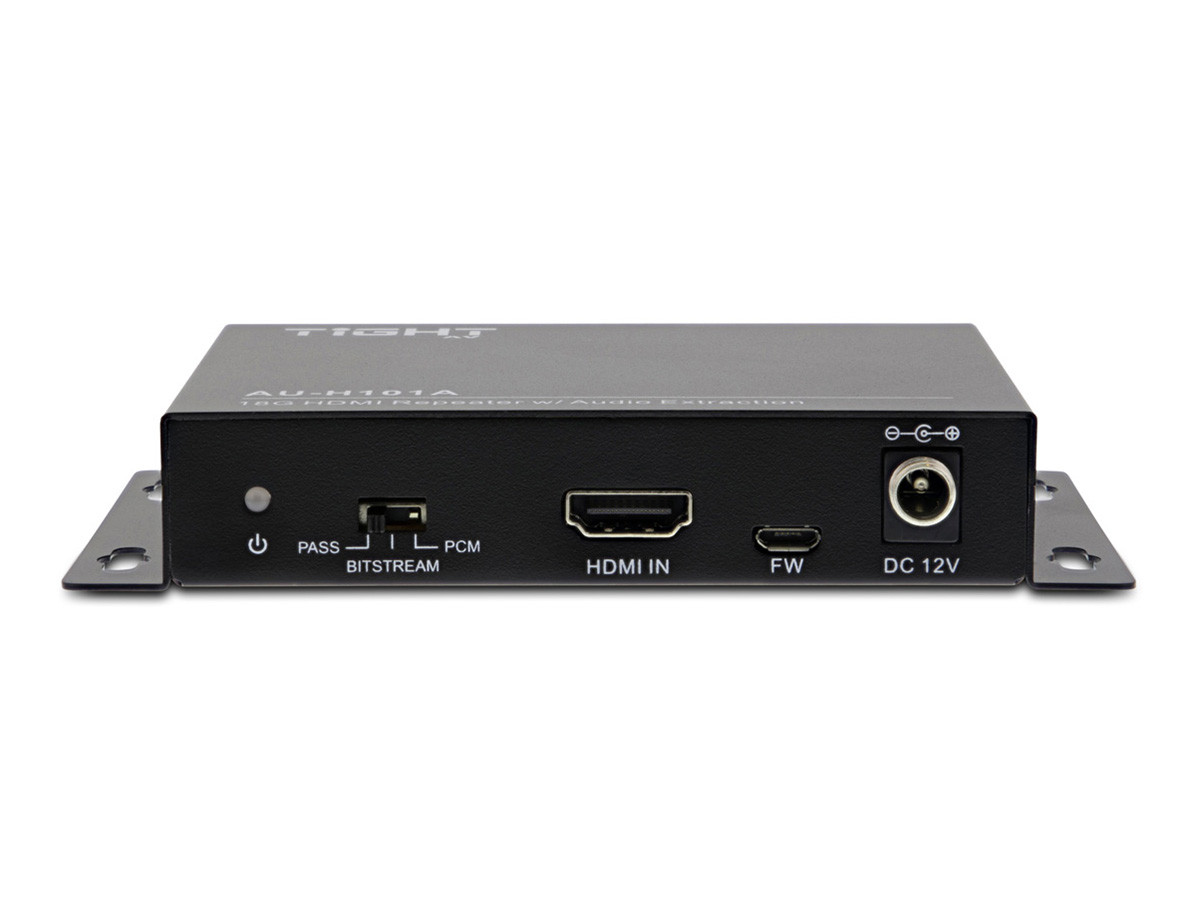

Input
(1) HDMI
Input connector
(1) 19-pin type-A female HDMI 2.0, HDCP2.2
Output
(1) HDMI
Output connector
(1) 19-pin type-A female HDMI 2.0, HDCP1.4
Audio
Output

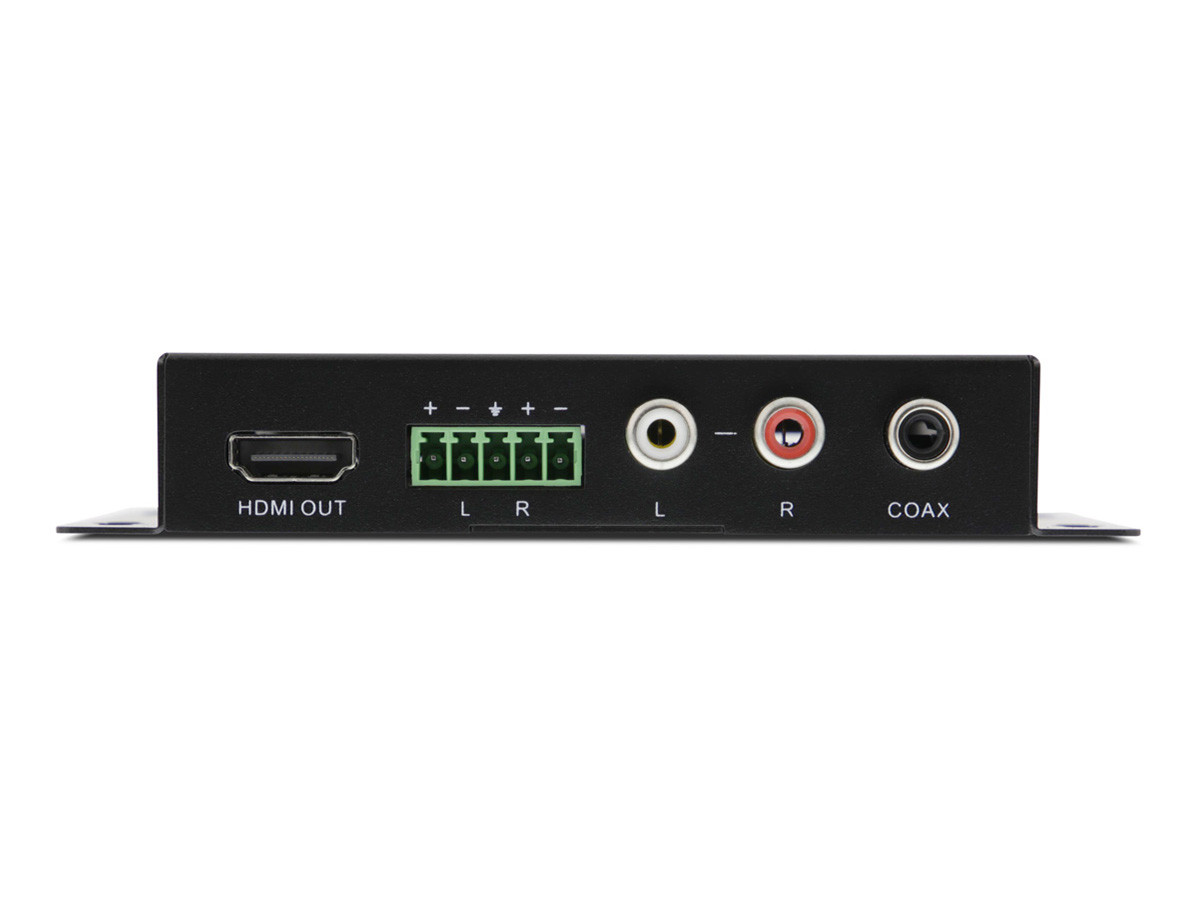

(1) Stereo balanced audio L/R; (1) Analog audio L+R ; (1) COAX
Output connector
(1) 5-Pin phoenix connector; (1) RCA ; (1) Coaxial audio connector
Stereo analog audio format
PCM
Coax digital audio format
LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
General
Max data rate
18Gbit/s
Max resolution
4Kx2K@60Hz 4:4:4
Work Temperature
-10~ 55℃
Reference humidity
10% ~ 90%
Power consumption
3 W (Max)
Power supply
Input: 100VAC~240VAC, 50/60Hz; Output: 12VDC 1A
Dimension (W*H*D)
129mm x 21.5 mm x77 mm
Net weight
244g
- Additional Information
-
Additional Information
Length, cm 0 Width, cm 0 Height, cm 0 Energijos sąnaudų klasė #N/D Manufacturer TIGHT AV Manufacturer's code AU-H101A Country of manufacture EAN code 570647013351 User's manual Download Gross weight, kg 0.5 Net weight, kg 0.244 Package Height, cm 7.0000 Package Width, cm 10.0000 Package Depth, cm 15.0000 Package volume, m3 0.0011 Comment for B2B customer #N/D - Reviews
-
