HDBT RECEIVER
Model name: EXT-H101L2-RX-HDBTCOMPACT 18G HDMI 2.0 OVER HDBT RECEIVERThe EXT-H101L2-RX-HDBT is a fully 18G HDMI 2.0b compliant HDBaseT receiver. It receives HDMI audio, video as well as control up to 70m using a single Category 6A solid core cable (4K 60Hz 40m / 1080P 60Hz 70m) from a compatible HDBaseT transmitter. Supports HDMI 2.0b, HDR and HDCP 2.2.
The EXT-H101L2-RX-HDBT provides crystal clear HDR and full bandwidth 4K video in a compact formfactor. This receiver supports automatic downscaling from 4K to 1080P without refresh rate change for easier installation when mixing 4K and 1080P displays.
Support for bi-directional PoC allows for easy installation by applying power to either the transmitter or the receiver end.
Features:
- Compact formfactor
- Supports HDMI 2.0b, 4K@60 4:4:4, HDR, HDCP 2.2.
- 4K HDMI signal extension up to 40m, and 1080p is 70m.
- Supports 4K to 1080p auto downscaling.
- Supports CEC, IR, and RS232 pass-through.
- Supports bi-directional 24V PoC for simplified installations.
Specifications:
Model
Receiver
Input
HDBT IN
Output
HDMI OUT

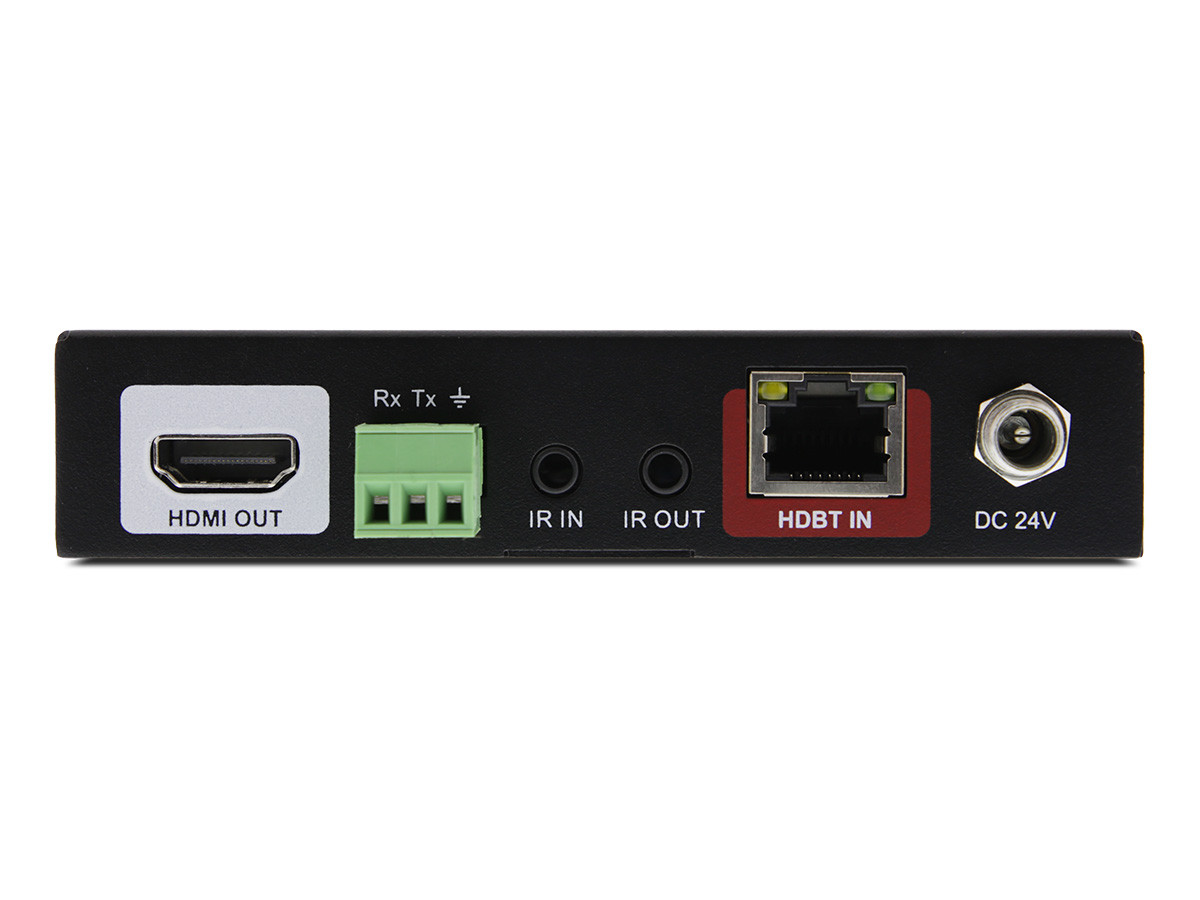

Control Ports
IR IN, IR OUT, RS232
General
Transmission Mode & Distance
HDBaseT；1080p ≦ 70m; 4Kx2K ≦ 40m
Resolution
Up to 4K@60Hz 4:4:4
Bandwidth
18Gbps
HDMI Standard
HDMI2.0b & HDCP2.2
Power Consumption
7W(Max)
Temperature
-10 ℃~ 50℃
Humidity
0% ~ 90%
Power supply
Input: 100VAC~240VAC, 50/60Hz; Output: 24VDC 1.25A
Dimension(W*H*D)
115mm x 84mm x 24mm
Net Weight(g)
235g
- Additional Information
-
Additional Information
Length, cm 0 Width, cm 0 Height, cm 0 Energijos sąnaudų klasė #N/D Manufacturer TIGHT AV Manufacturer's code EXT-H101L2-RX-HDBT Country of manufacture EAN code 570647013434 User's manual Download Gross weight, kg 0.4 Net weight, kg 0.235 Package Height, cm 8.4000 Package Width, cm 11.5000 Package Depth, cm 2.4000 Package volume, m3 0 Comment for B2B customer #N/D - Reviews
-
