Deltaco Baltic

DELTACO Office, full-motion 2-way wall, 23"-55", 35kg, 75x75-400-400 / ARM-0256

More Views

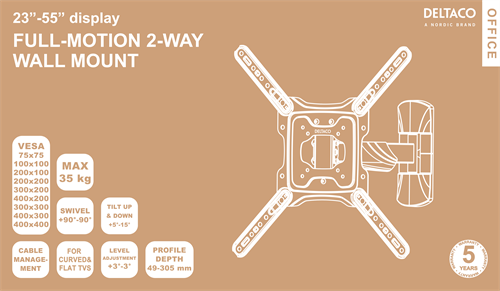

DELTACO Office, full-motion 2-way wall, 23"-55", 35kg, 75x75-400-400 / ARM-0256
DELTACO 23"-55", / ARM-0256
Description

Details

DELTACO OFFICE Elegant fully articulating wall mount, tiltable, swivel, 23 "-55", 35 kg, black

ARM-0256 is a fully articulated wall mount for most flat screens between 23 "-55" up to 35 kg. The arm can be extended up to 305 mm for full freedom of movement so you can position your screen perfectly - swing up to 90 ° in either direction and tilt from -15 ° to + 5 °. This pre-assembled arm comes complete with built-in cable management and decorative wraps to ensure an elegant tidy look. Built-in level adjustment offers 3 ° clockwise and counterclockwise rotation to ensure perfect level adjustment. The wall bracket is compatible with the VESA dimensions 75x75,100x100,200x100,200x200,300x200,300x300,400x200,400x300,400x400.

• 5 year warranty
• Tilt: + 5 ° ~ -15 °
• Swivel: + 90 ° ~ -90 °
• Free Tilting Design: for best viewing angle
• Cable management: elegantly hides all cables connected to screens

The package contains: Wall bracket, wall mounting kit, screen mounting kit and manual.

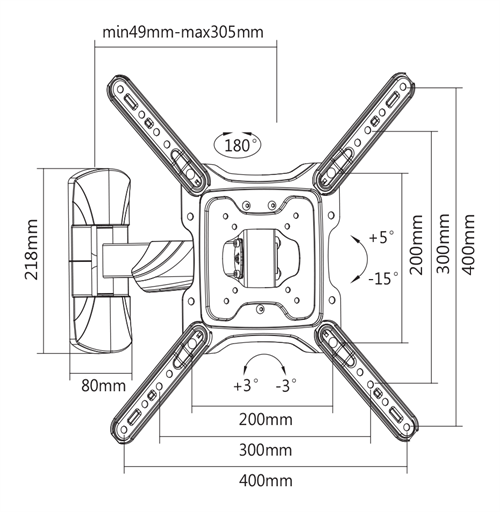

Dimensions: (WxDxH) 435 x 435 x 305 mm

Width    43.5 cm
Design    Full-motion
Depth    30.5 cm
Package dimensions (WxDxH) / weight    41 cm x 23 cm x 5.5 cm / 2.5 kg
Color    Black of fine texture
Contents of the package    Normal / Ziplock polyp bag, Poly bag with compartments
Height    43.5 cm
Adjustable depth    4.9-30.5 cm
adjustments    Level, slope, rotation, depth
Cable management    Built-in cable management
Inclination    -15 ° to 5 °
Material    Plastic, steel
Maximum load    35 kg
Recommended use    LCD Display
Recommended TV size    23 "-55"
Service and support    Limited warranty - 5 years
sWIVEL    -90 ° to 90 °
Type    Wall mounting
Equalization    -3 ° to 3 °
VESA mounting interface    100 x 100 mm, 75 x 75 mm, 200 x 200 mm, 400 x 300 mm, 400 x 200 mm, 400 x 400 mm, 300 x 200 mm, 200 x 100 mm, 300 x 300 mm
Finishes    powder coated

Additional Information

Additional Information

Length, cm 0
Width, cm 0
Height, cm 0
Energijos sąnaudų klasė #N/D
Manufacturer DELTACO
Manufacturer's code ARM-0256
Country of manufacture China
EAN code 733304804270
User's manual Download
Gross weight, kg 2
Net weight, kg 1.8
Package Height, cm 7.0000
Package Width, cm 24.0000
Package Depth, cm 42.0000
Package volume, m3 0.0071
Comment for B2B customer #N/D
