EV-Charging cable DELTACO Type 2 - Type 1, 1 phase, 16A, 3.6KW, 5m, black / EV-1105

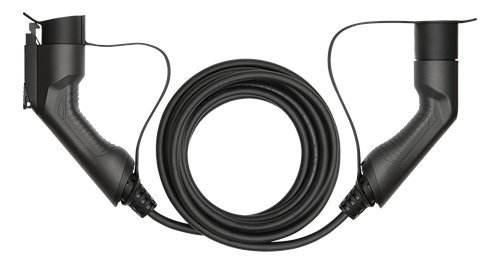

DELTACO e-Charge charging cable, type 2 to type 1, 1 phase, 16A, 3.6KW, 5m, black

DELTACO e-Charge EV-1105 charging cable fits all vehicles with a Typ1 socket for those who want to charge via a public charger or their own dedicated charging box at home with a Type2 socket called mode 3 charging. Charging power up to 3.6KW.

Silver-plated connections guarantee good contact and long service life. Length 5M. Equipped with dust cover to protect against dust, dirt and moisture during storage.
The cable is made of a TPE material that provides good resistance to oil, abrasion and UV light. The cable is also flexible in cooling.

Cars with Type 1 sockets are e.g. Mitsubishi Outlander.

The charging of the car is monitored through a two-way communication between the car and the charger. When the cable is connected to the car, a self-test is performed which ensures that the cable is correctly connected and that the car is ready to receive power, before charging begins and the cable is energized. After charging, first remove the charging cable on the side of the car so that it is disconnected from the charger.

The cable must not be repaired or spliced ​​as this may affect its safety and function.

• Certification: TUV 2 PfG 1908
• Cable: EV07EE-H, 3G2,5mm² + 1x05mm²
• Classification: IP66
• Weight: 1,55KG
• Working temperature : -30 ° C - + 50 ° C
• 3 year warranty
