GeChic On-Lap M505E 15.6 "1080p screen with HDMI loop, 15ms GTG, HDMI, USB-C, black / TV-M505E

GeChic On-Lap M505E 15.6 "1080p screen with HDMI loop, 15ms GTG, HDMI, USB-C, black

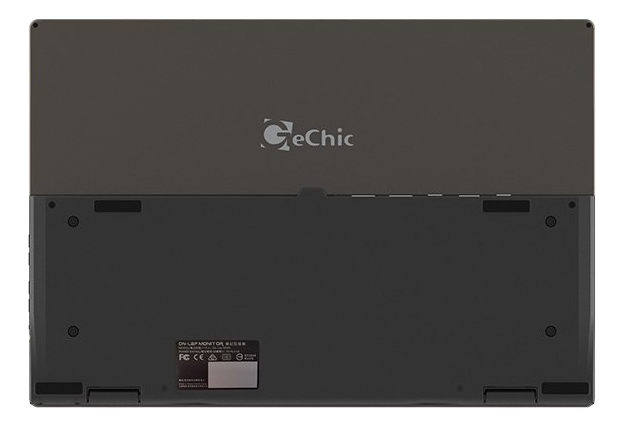

The 15.6-inch FHD ultra-thin screen has a rear connection design to hide wires on the back. Lightweight, practical and supportive VESA 100 wall mounts make the M505E the best choice for digital meeting rooms, commercial space and embedded systems.

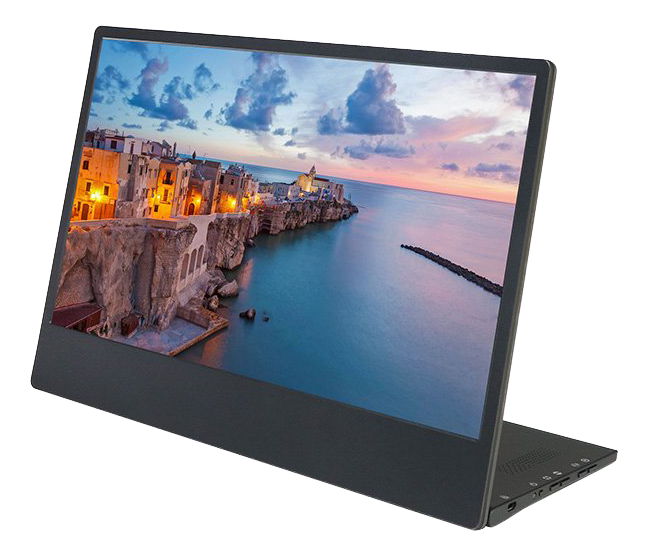

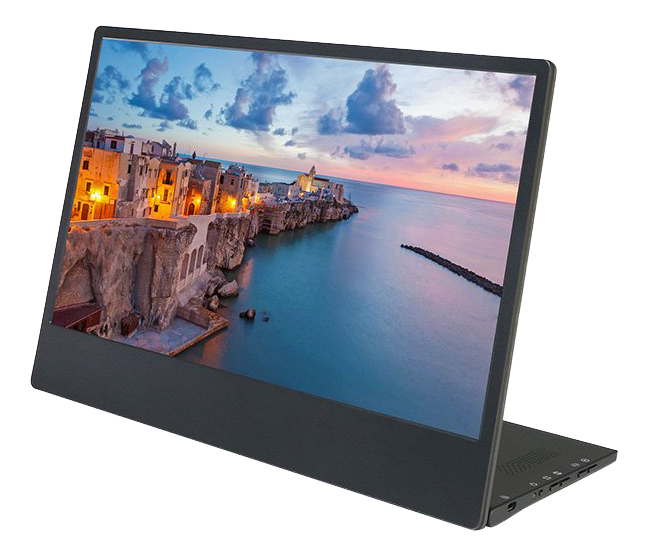

The M505 series has a foldable clamshell design that combines the screen and docking station with hinges. The docking station handles the functions of input / output ports, OSD buttons and monitor stand to give a narrow and clean look to the front display area. The screen can be used to stand firmly on the desk and support stepless viewing angles from 40 ° to 85 °.

• Panel: 15.6 ”(16: 9) wide TFT-LCD
• Active range: 344.2 mm * 193.5 mm (WxH)
• Pixel height: 0.179 mm (H) * 0.179 mm (V)
• Resolution: 1920 x 1080
• Color depth: 16.7M colors
• Brightness: 250 (cd / m²) (Normal)
• Contrast: 700: 1 (typical)
• Viewing angle: 170 ° (H) / 170 ° (V) (CR> 10)
• Surface: Matte
• Response time (GTG): 15 (ms) (Normal)
• Video input: HDMI, USB Type-C (DP1.2) * 1

Dimensions (WxDxH): 364x6.9x250mm
Weight: 1168 g



Aspect ratio    16: 9
Diagonal size    15.6 "
Characteristics    HDCP
Characteristics    Security lock slot (cable lock sold separately), LED indicator, foldable, portrait / landscape mode
Color support    16.7 million colors
Interface    HDMI
Interface    HDMI output
Interface    Headphones
Interface    USB-C
Horizontal viewing angle    170
Included accessories    Arm
Contrast ratio    700: 1
Brightness    250 cd / m²
Humidity during operation    45 - 85%
Maximum temperature during operation    50 ° C
Supplied cables    1 x HDMI cable - 1.2 m
Supplied cables    1 x USB-C to USB-A adapter
Supplied cables    1 x USB-C cable - 1 m
My operating temperature    0 ° C
Dimensions and weight (components)    Base - width: 36.4 cm - depth: 1.07 cm - height: 13.5 cm
Dimensions and weight (components)    Upper cover plate - width: 36.4 cm - depth: 0.69 cm - height: 25 cm
Mains voltage    DC 5 V
Response time    15 ms
Standards followed    VCCI, FCC, RoHS
Power consumption (max)    10 watts
Power consumption (when off)    0.5 watts
Power consumption stand with    0.5 watts
Type    Speakers - stereo
Type of monitor    LCD screen
Type of security location    Kensington security location
Original resolution    Full HD (1080p) 1920 x 1080 at 60 Hz
Output power / channel    1.5 watts
Vertical viewing angle    170
VESA mounting interface    100 x 100 mm
Weight    1,168 kg
