TOTEN System G, 19" cabinet, 42U, 800x800, glass front door, metal rear door/ 19-G8842GM

More Views

TOTEN System G, 19" cabinet, 42U, 800x800, glass front door, metal rear door/ 19-G8842GM
Komutacinė spinta TOTEN 19 colių, 42U, 800x800 / 19-G8842GM
Description

Details

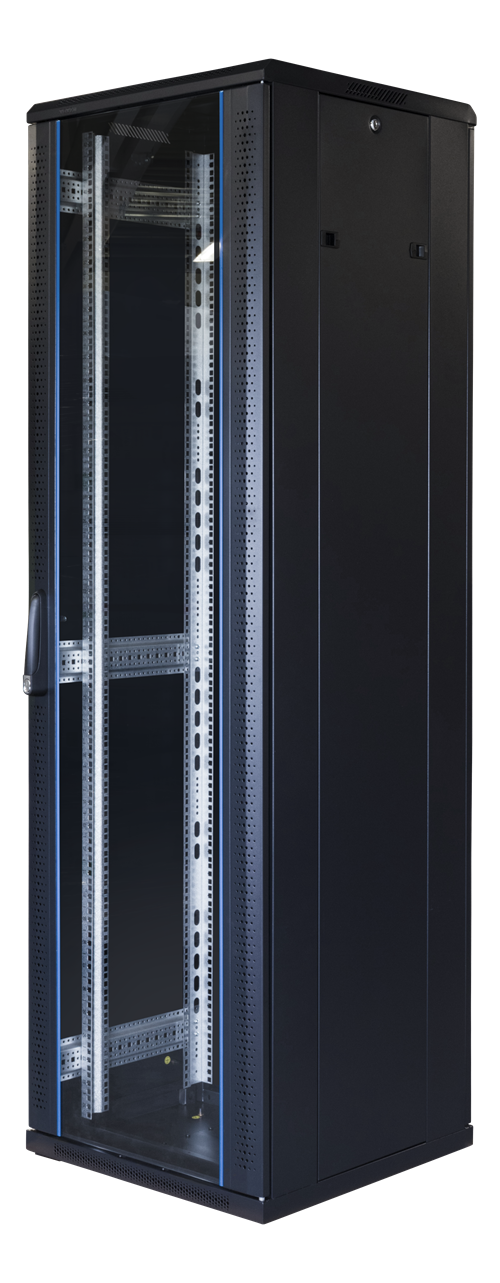

TOTEN System G, 19" cabinet, 42U, 800x800, glass front door, metal rear door, 800kg load, black.

Machine-made cabinet where all parts are cut out with laser, punched with hydraulic turret and welded by robots to achieve absolute precision. All sharp edges are rounded and then assembled and quality assured according to ISO 9001.

The 19 "units are mounted on four columns made of a patented zinc alloy. A material that helps to counteract electrostatic damage, is strong enough for repeated installations and has a dirt-resistant surface structure. The columns are adjustable for- and backwards in increments of 25 millimeters. They also have well-designed holes for cable handling and have a clear Unit-marking that is also visible when the units are mounted.

The roof offers space for the TOTEN Modular Fan System with practical exterior mounting and providing a selectable cooling capacity.

At the bottom, there are step-wise openable cable glands for up to 1000 network cables as well as separate holes for power cables.

• A cabinet with options for both server and network equipment.

• Front door of tempered glass with ventilated steel frame.

• Back door of solid metal.

• Distributed loading capacity: 800kg (Static).

• Internal mounting width of 487mm.

• Mounting columns of 2mm zinc alloy.

• Outer cover of 1.2mm powder coated SPCC steel (RAL9004).

• Protection class: IP20.

• Dimensions (WxDxH): 800x800x2055mm (42U).

All cabinets have right-handed front- and rear doors with locks as well as removable and lockable side panels. The cabinet comes bundled with feet and is ready for use in five minutes.

Wheels, basket nuts with screw, keys and a mounting tool are included.

Always open the packaging and check that the cabinet is intact before you sign on the waybill. Any transport damage must be recorded/documented and complained about the shipper to the receiver.

Additional Information

Additional Information

Length, cm 80
Width, cm 80
Height, cm 205.5
Energijos sąnaudų klasė #N/D
Manufacturer TOTEN
Manufacturer's code 19-G8842GM
Country of manufacture
EAN code 733304803979
User's manual Download
Gross weight, kg 106
Net weight, kg 104
Package Height, cm 88.0000
Package Width, cm 92.0000
Package Depth, cm 215.0000
Package volume, m3 1.7406
Comment for B2B customer #N/D
