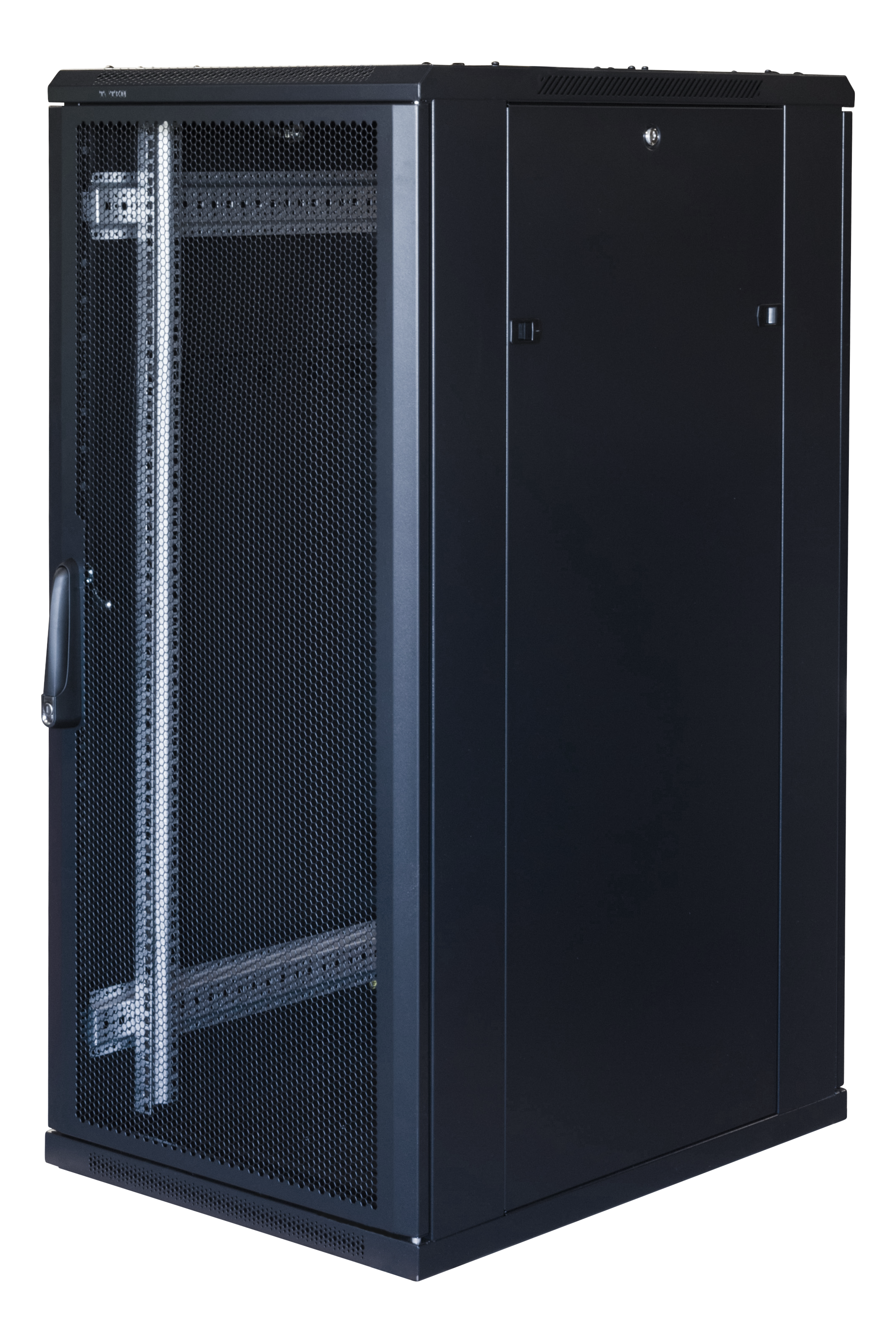

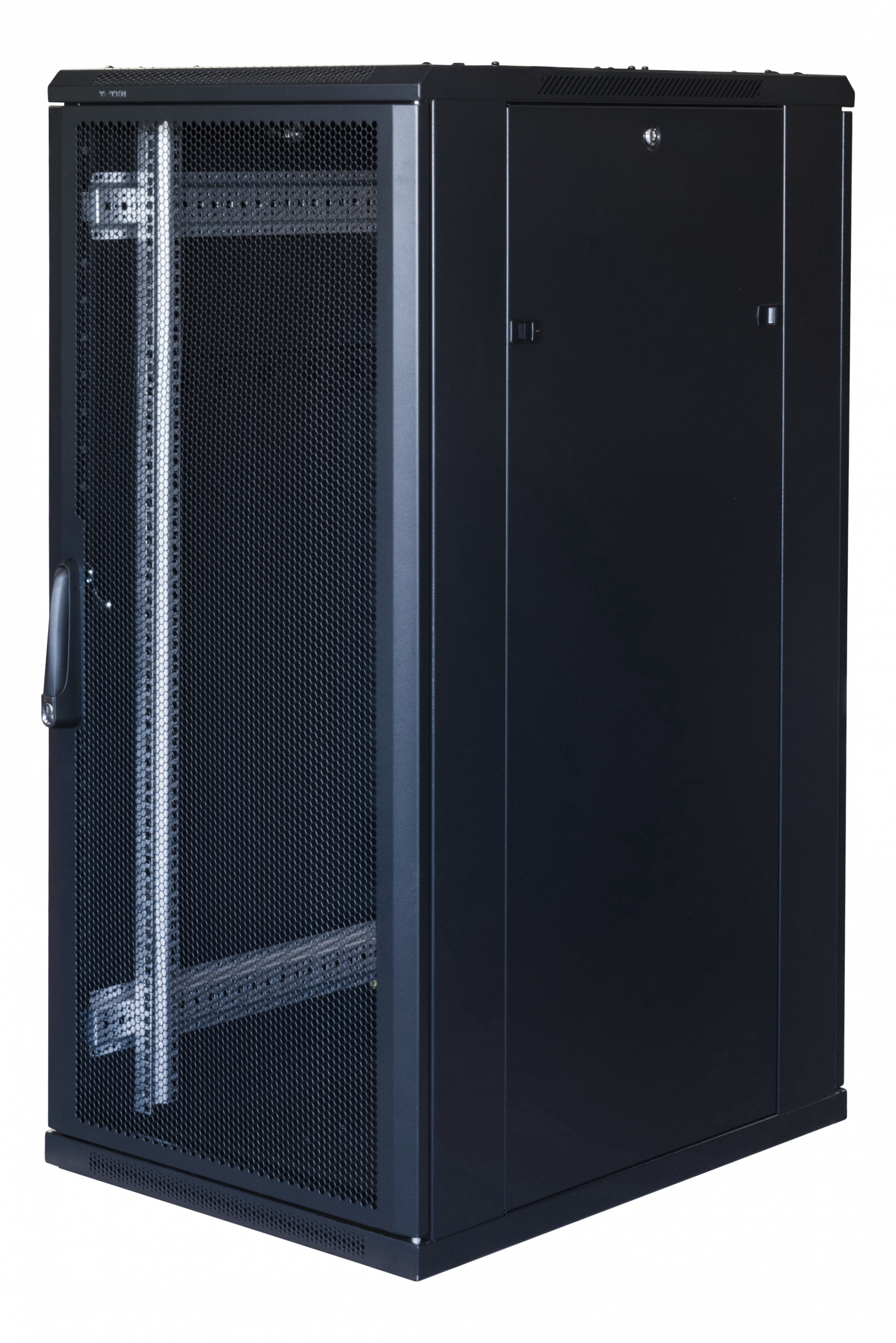

System G, 19" cabinet, 27U, 600x800, perforated doors, 800kg load, black
- Cabinet with options for both server and network equipment
- Front and back door of perforated metal with 75% ventilation rate
- Outer cover of 1.2mm powder coated SPCC steel (RAL9004)
- Distributed loading capacity: 800kg (Static)
- Internal mounting width of 487mm
- Mounting columns of 2mm zinc alloy
Machine-made cabinet where all parts are cut out with laser, punched with hydraulic turret and welded by robots to achieve absolute precision. All sharp edges are rounded and then assembled and quality assured according to ISO 9001.Product description
The 19 "units are mounted on four columns made of a patented zinc alloy. A material that helps to counteract electrostatic damage, is strong enough for repeated installations and has a dirt-resistant surface structure. The columns are adjustable for- and backwards in increments of 25 millimeters. They also have well-designed holes for cable handling and have a clear Unit-marking that is also visible when the units are mounted.
The roof offers space for the TOTEN Modular Fan System with practical exterior mounting and providing a selectable cooling capacity.
At the bottom, there are step-wise openable cable glands for up to 1000 network cables as well as separate holes for power cables.Specification
Width 60 cm Depth 80 cm Characteristics Lockable front door, lockable rear door, ventilated, perforated rear door, perforated front door, IP20 protection Package dimensions (WxDxH) / weight 67 cm x 90 cm x 141.8 cm Finish Electrostatic powder, galvanized Color Black, RAL 9004 Height 138.8 cm Height (U-format) 27U Product material Cold rolled steel, zinc-aluminum alloy Product type Rack Stand size 19 " Weight limit 800 kg - Дополнительная информация
-
Дополнительная информация
Длина, см 0 Ширина, cm 0 Height, cm 0 Energijos sąnaudų klasė #N/D Производитель TOTEN Код производителя G3.6827.9801 Страна производства Штрих-код 733304802450 User's manual Download Gross weight, kg 71.5 Вес нетто, кг 70.59999999999999 Package Height, cm 150.0000 Package Width, cm 68.0000 Package Depth, cm 92.0000 Объем упаковки, м3 0.9384 Комментарий для бизнес-клиентов #N/D - Отзывы
-
