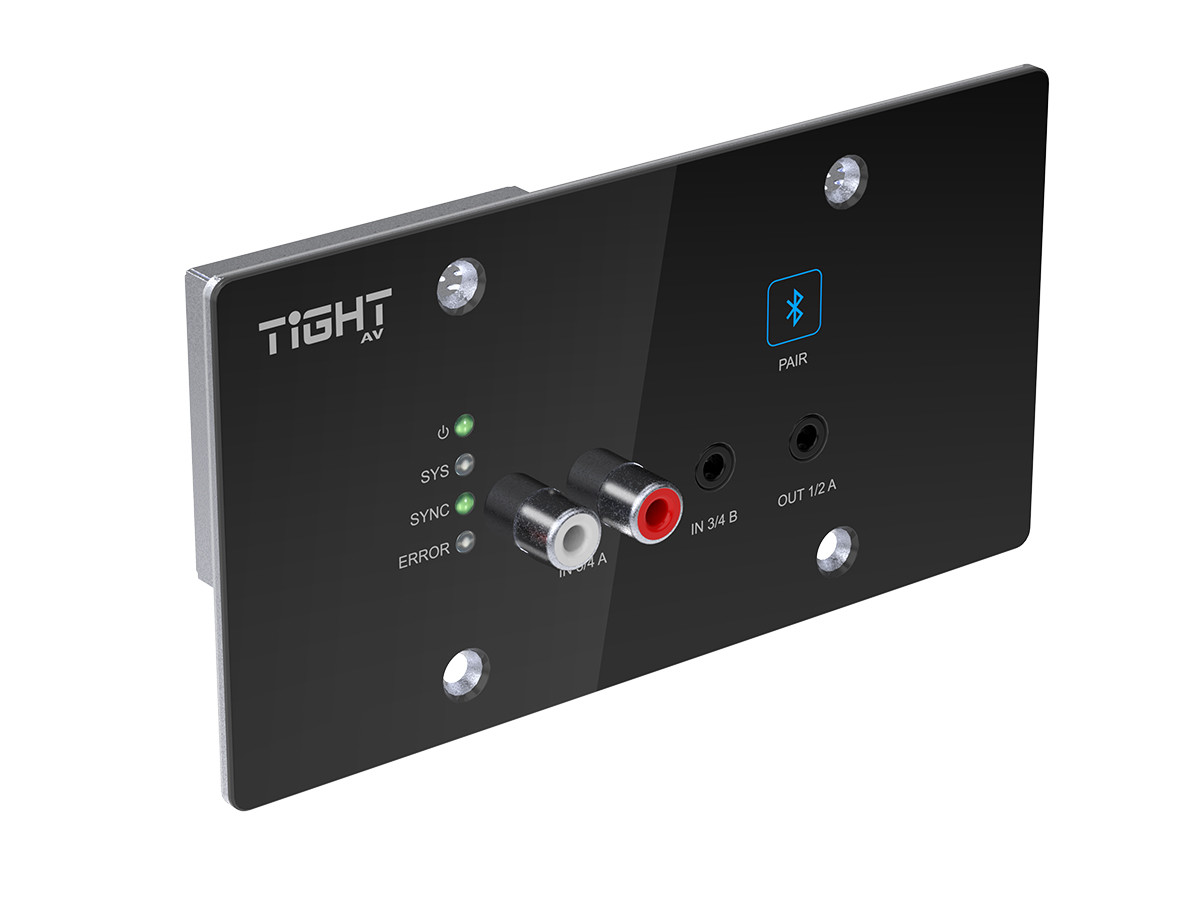

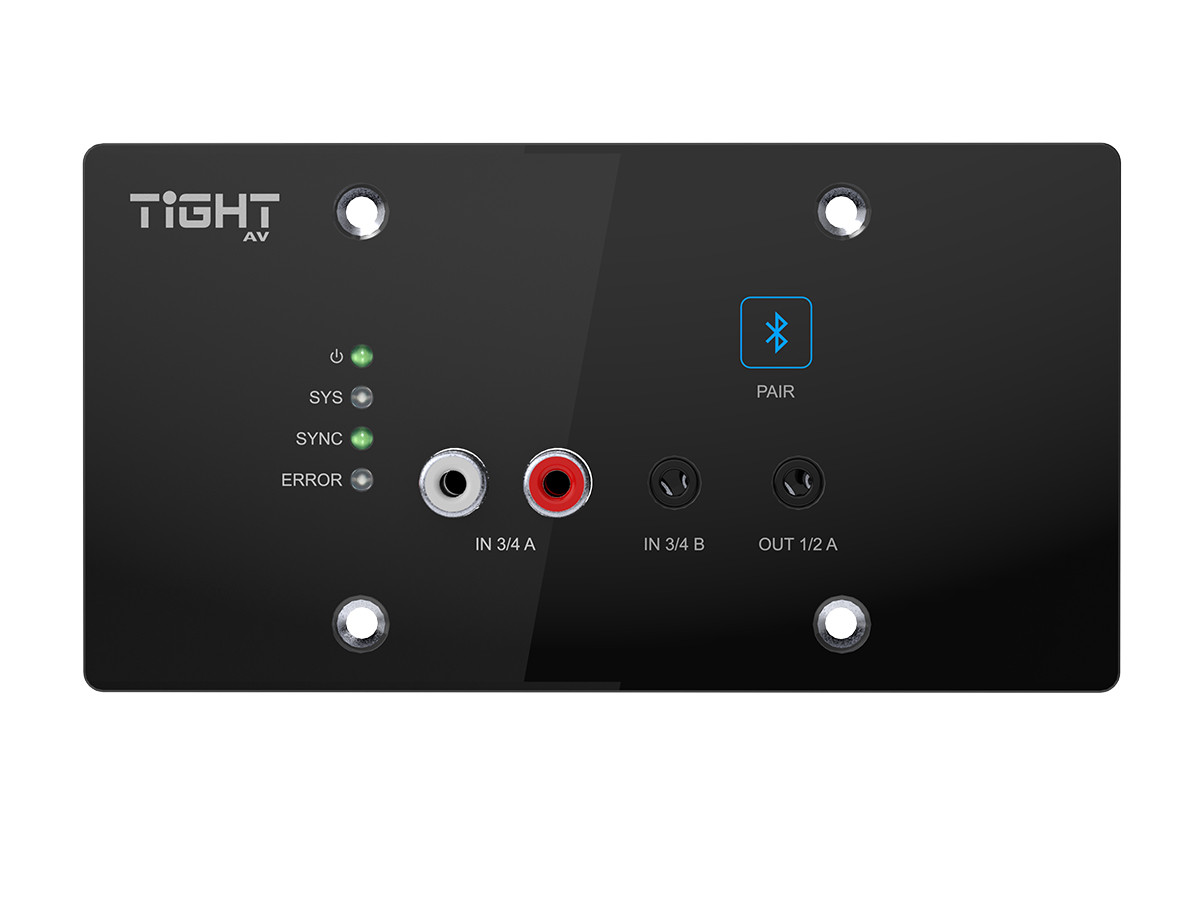

BLUETOOTH DANTE WALL INTERFACE, BLACK
Model name: AU-BT413WP-DA-BLFeaturing bi-directional Bluetooth audio, the interface allows you to transmit two channels of Bluetooth audio onto the Dante network, and simultaneously receive one Dante channel. The paring is as simple as pressing a button on the front panel, and you can give the unit any friendly name you like.
Need more I/O? No problemo. Additional inputs and outputs are available via unbalanced RCA and TRS mini-jack connectors on the front panel.
On the setup side, audio routing and control is maintained via Dante Controller and Domain Manager. A web UI handles the configuration of the device itself, with an open API for third-party control.
The AU-BT413WP-DA is perfect for simple BYOD, or you could use the call bridging feature for conference calls utilizing the existing audio equipment in the room.Input
Inputs
Stereo Bluetooth 5.0 audio receiver
L+R stereo unbalanced audio on RCA
Stereo unbalanced audio on 3.5mm TRS
Bluetooth Range
Recommended max 15m (depending on source Bluetooth device and installation environment)
Output
Outputs
One channel Bluetooth 5.0 audio transmitter
Two unbalanced line level outputs on 3.5mm TRS
Audio Performance
Gain
Input: -12 ~ +18dB, 6dB per step
Output: -60 ~ 0dB, 1dB per step
Frequency Response
20Hz - 20KHz (±0.5dB)
Max Input Level
+12dBu @ 0dB input gain
Output: +18dBu @ 0dB output gain
Max Output Level
+12dBu @ 0dB input gain
Output Noise
<-79dBu @ 0dB gain
THD
<0.05% at 0dBu,1kHz, 0dB gain
Dante
Bit Depth
24
Sample Rate
44.1kHz or 48kHz
Latency
1,2 or 5ms (configurable using Dante Controller)
Network Transport
Dante Audio over IP
AES67 RTPControl
Control
(1) Dante Network (1) Pair button
Control Connector
(1) RJ45 (1) Bluetooth button
General
Model Names
AU-BT413WP-DA-WH (white front)
AU-BT413WP-DA-BL (black front)Power
802.3af PoE
Operation Temperature
-10℃ ~ +55℃
Storage Temperature
-25℃ ~ +70℃
Relative Humility
10%-90%
Power Consumption
4.22W (Max)
Dimension (WxHxD)
151mm x 80mm x 42mm
Net Weight
195g
Shipping Dimension
(LxWxH)178mm x 108mm x 55mm
Shipping Weight
300g
Compliance
Environmental RoHs, WEEE
FCC, CE
Environmental
RoHs, WEEE
