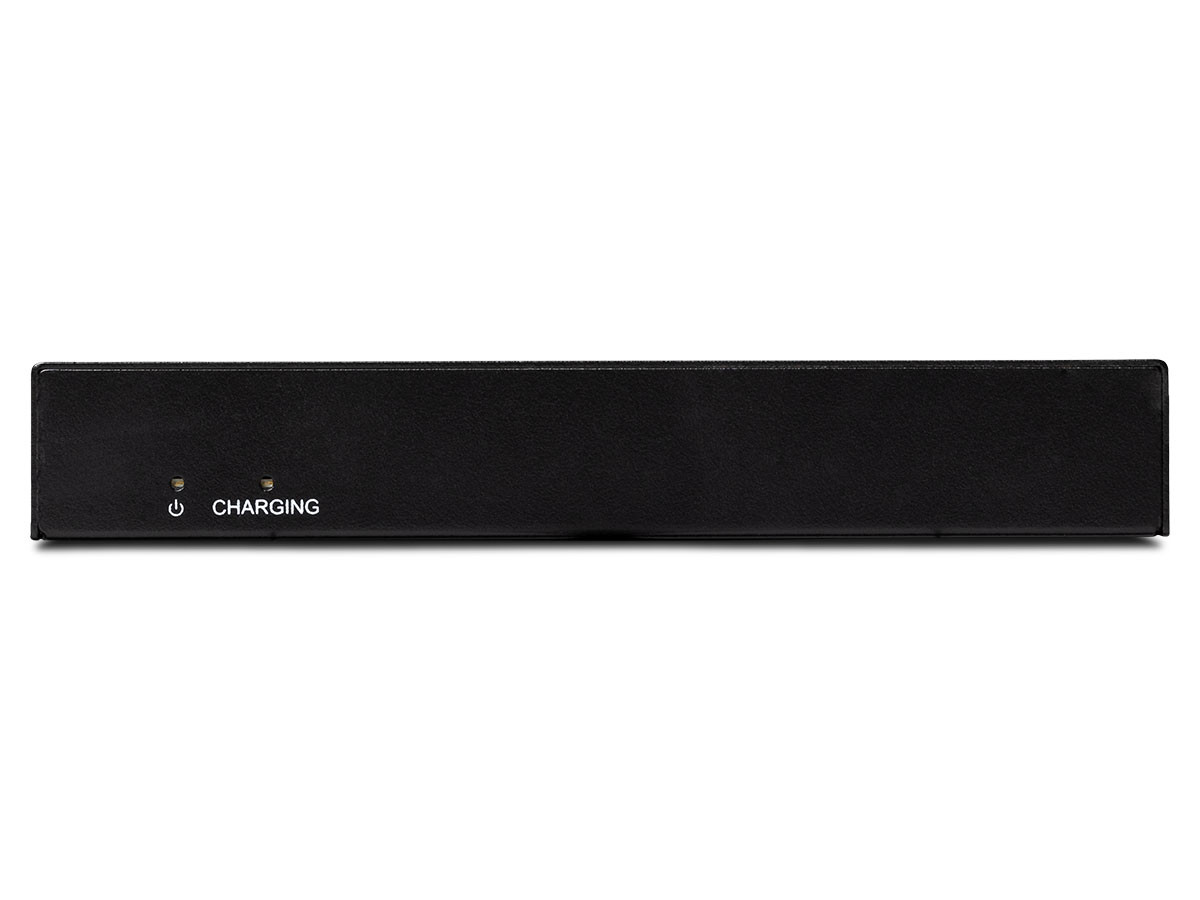

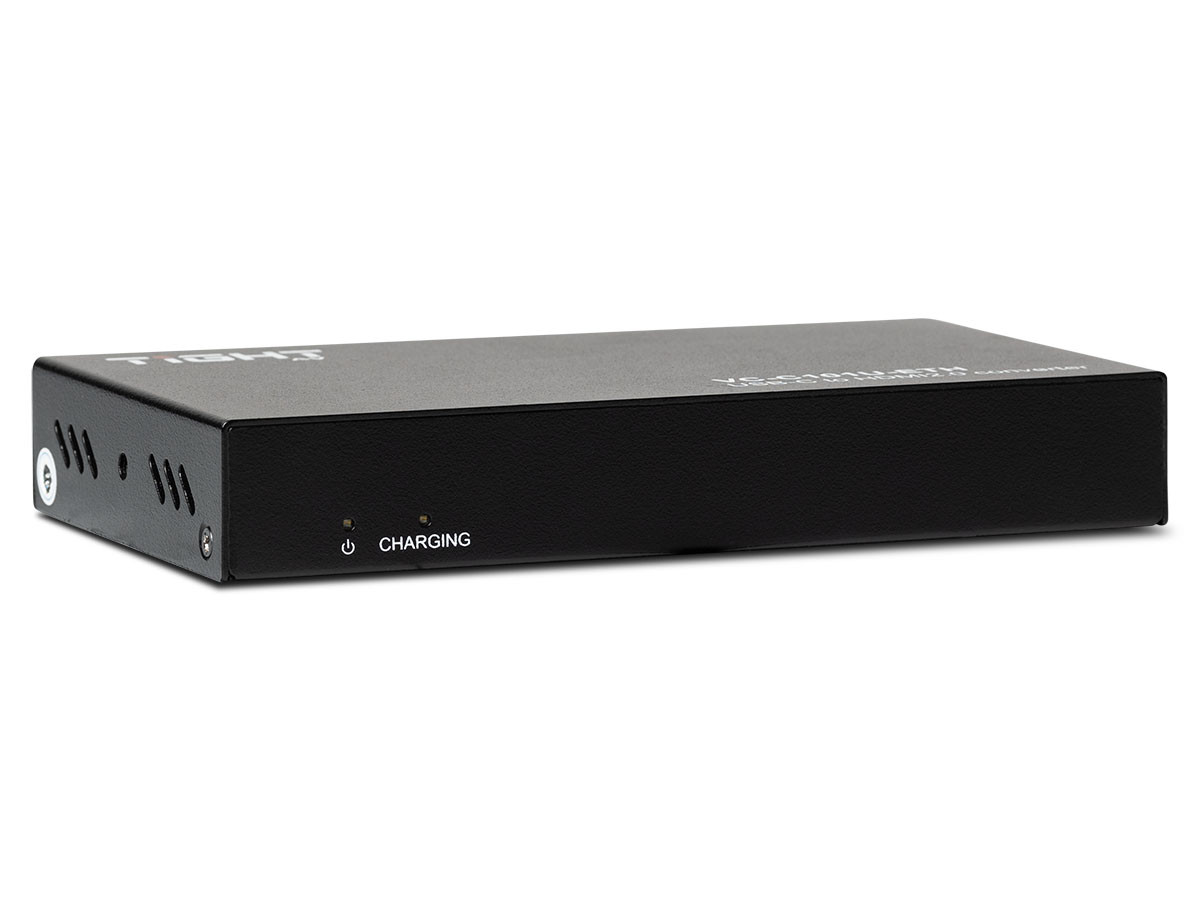

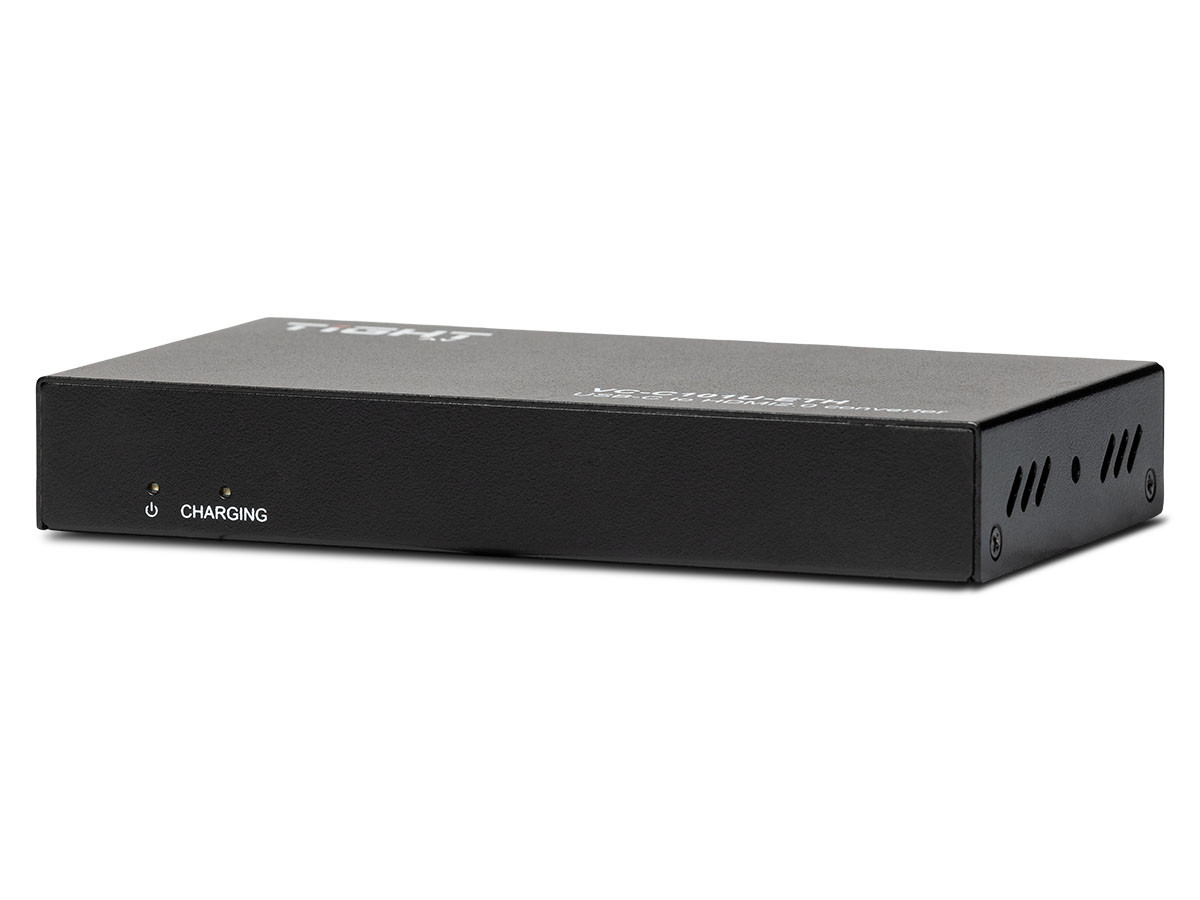

USB-C TO 18G HDMI2.0 CONVERTER WITH USB AND ETHERNETThe VC-C101U-ETH converts 4K@60Hz 4:4:4(max) DisplayPort alt mode signal over USB-C video input to 4K@60Hz 4:4:4(max) HDMI 2.0 video output.
For the USB-C input interface, it also supports USB 3.2 Gen2 data transfer, Gigabit LAN and 100W fast-charging.

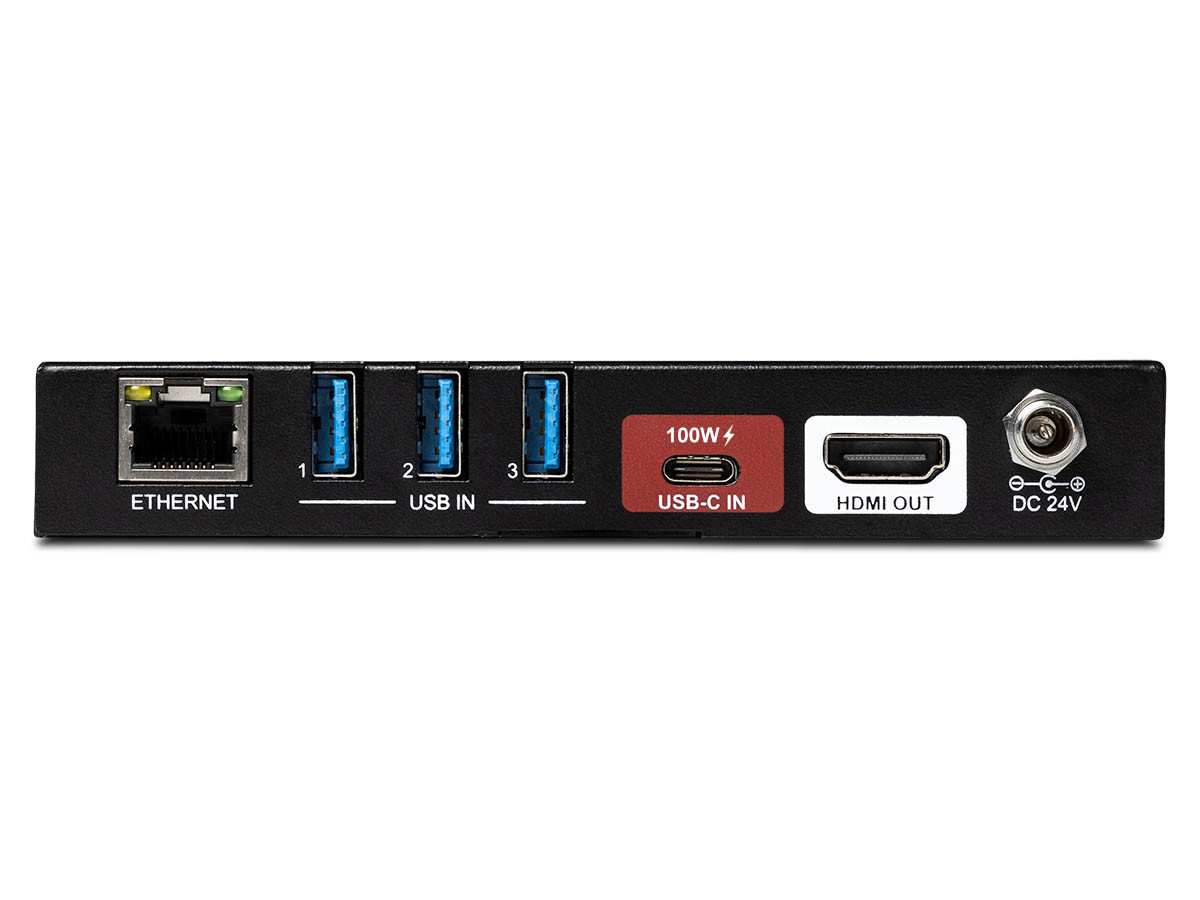

The converter includes three USB 3.2 device ports and one Ethernet Gigabit LAN port.
Features
- Input supports DisplayPort Alt mode up to 4K@60Hz 4:4:4 using DisplayPort 1.4 (DisplayPort 1.2 is limited to 4K@30Hz 4:4:4).
- Output supports HDMI 2.0, 4K@60Hz 4:4:4.
- HDCP 2.3 support.
- USB-C input supports 100W USB Power Delivery.
- Supports USB3.2 Gen2 (up to10Gbit/s) data transfer via USB-C.

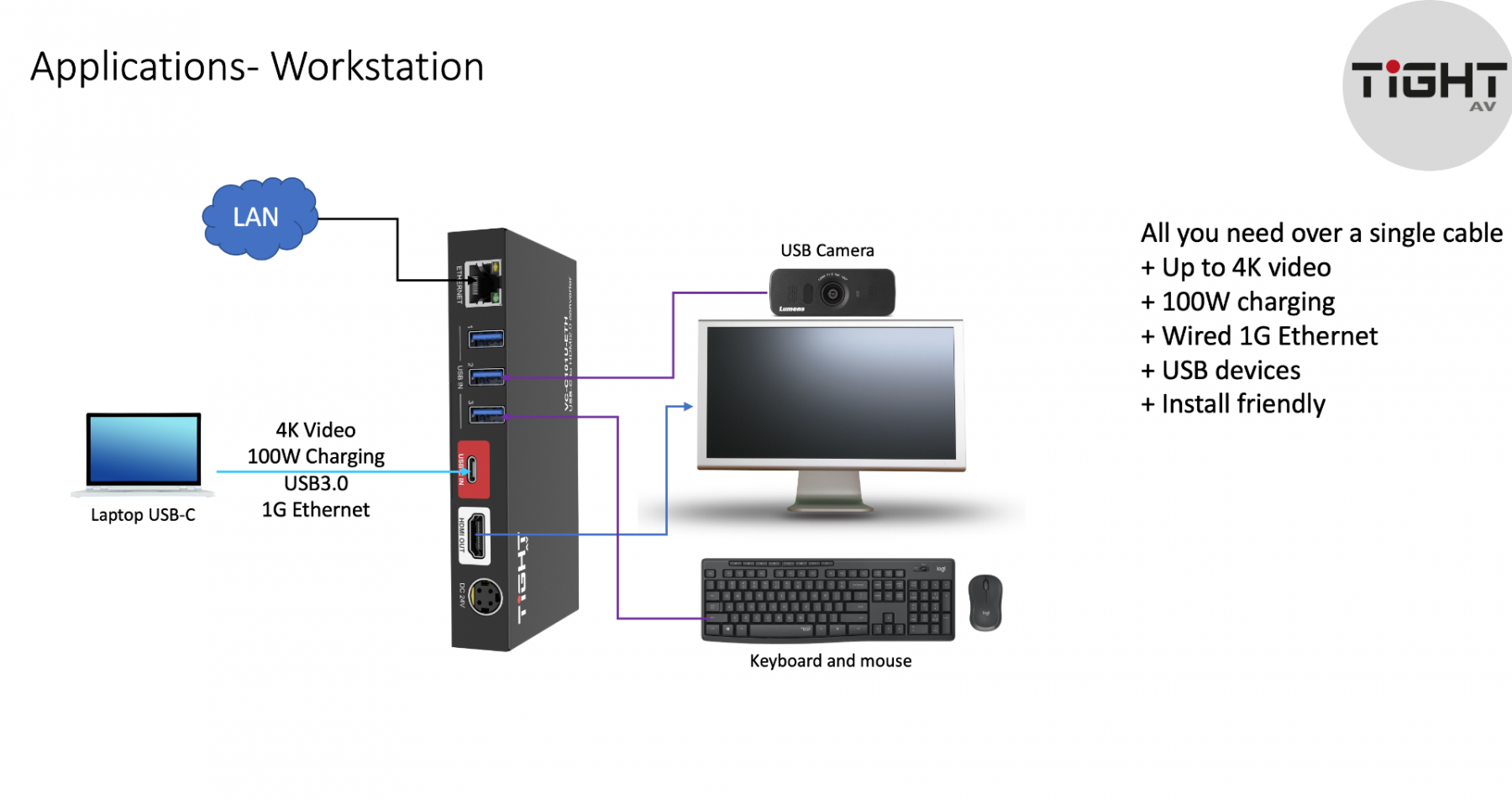

- 3x USB 3.2 device ports for camera, keyboard and mouse.
- Ethernet Gigabit LAN pass-through via USB-C
- No software drivers required - Plug and Play.
Video Input
Input
(1) USB
Input Connector
(1) USB-C
Input Resolution
Up to 4K@60Hz 4:4:4 (HBR3)
USB Standard
USB3.2 Gen2
Video Output
Output
(1) HDMI
Output Connector
(1) Female type-A HDMI
HDMI Output Resolution
Up to 4K@60Hz 4:4:4
HDMI Standard
2.0b
HDCP Version
2.3 compliant (backwards compatible)
USB
Connector
(3) USB-A, (1) USB-C
USB Standard
(3) USB-A: USB 3.2 Gen 1, 5V1A External Power Supply
(1) USB-C: USB 3.2 Gen 2, DisplayPort Alt mode, 100W External Charging
Ethernet
Standard
10/100/1000Base-T
General
Bandwidth
18Gbps
Operation Temperature
-10 ~ +55℃
Storage Temperature
-25 ~ +70℃
Relative Humility
10% - 90%
Power Supply
Input:100V~240V AC; Output: 24V DC 6.25A
Power Consumption
108W(Max)
Dimension (W*H*D)
145mm x 22mm x 80mm
Net Weight
290g
Compliance
FCC, CE
Environmental Compliance
RoHS, REACH, WEEE
