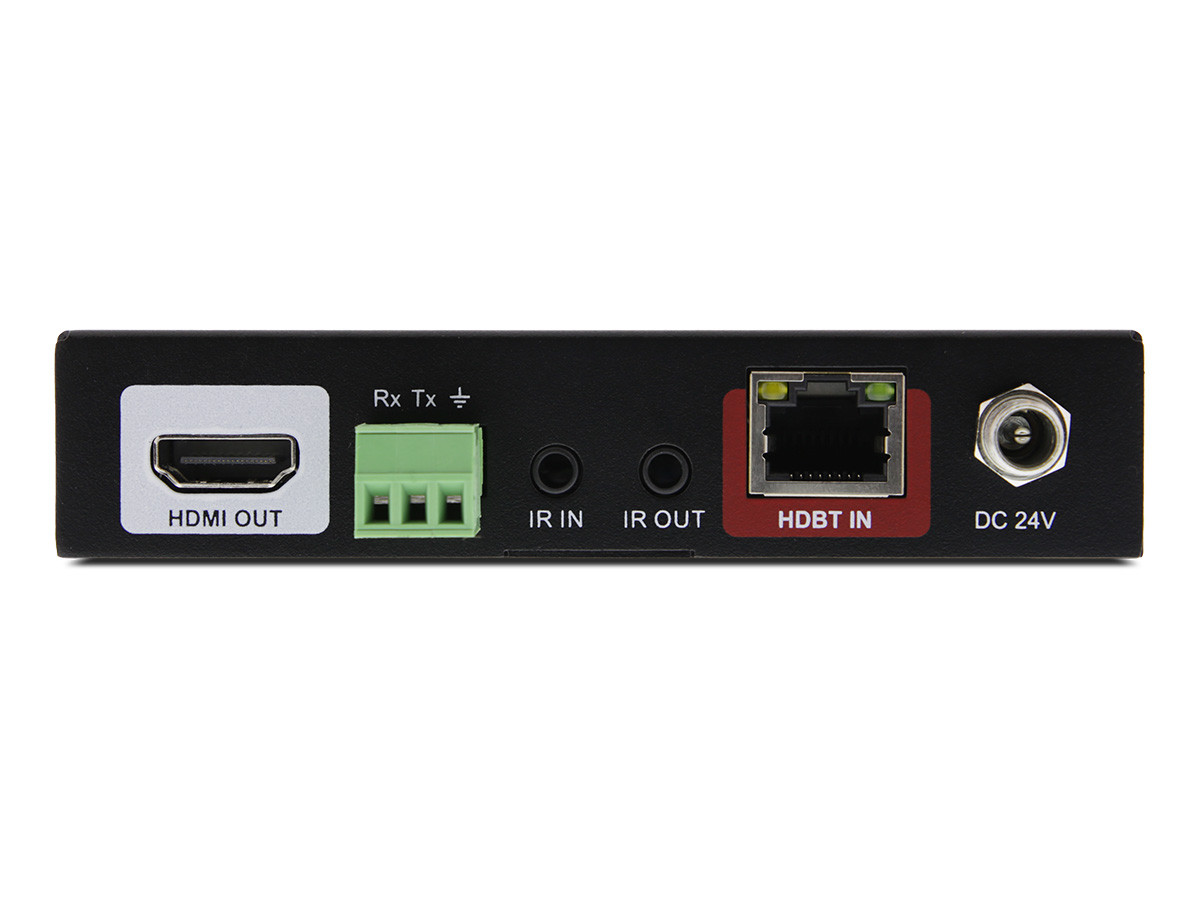

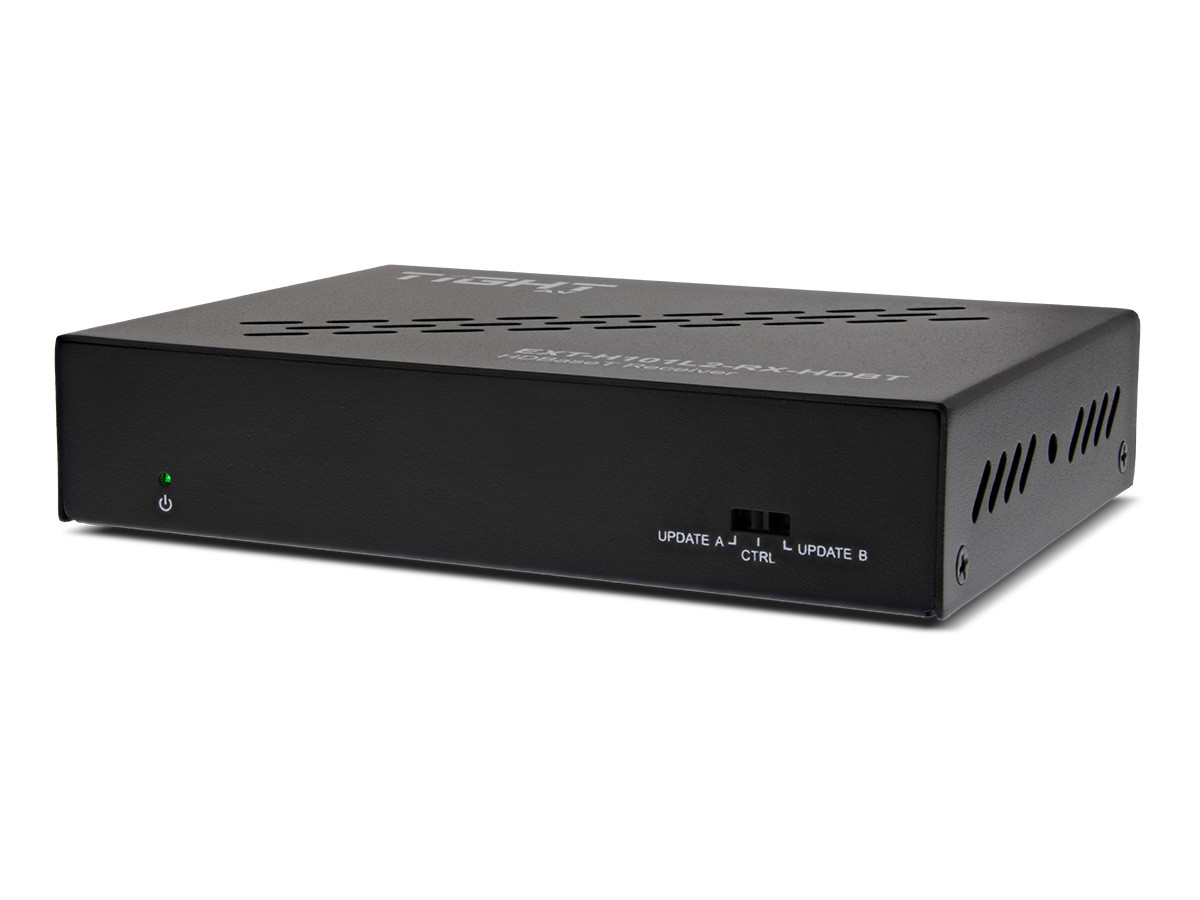

TIGHT AV HDBT Scaling Receiver with Local HDMI input / EXT-H101L2-RX-HDBT

Больше изображений

TIGHT AV HDBT Scaling Receiver with Local HDMI input / EXT-H101L2-RX-HDBT
TIGHT AV / EXT-H101L2-RX-HDBT
Описание

Подробности

HDBT RECEIVER

Model name: EXT-H101L2-RX-HDBT

COMPACT 18G HDMI 2.0 OVER HDBT RECEIVER

The EXT-H101L2-RX-HDBT is a fully 18G HDMI 2.0b compliant HDBaseT receiver. It receives HDMI audio, video as well as control up to 70m using a single Category 6A solid core cable (4K 60Hz 40m / 1080P 60Hz 70m) from a compatible HDBaseT transmitter. Supports HDMI 2.0b, HDR and HDCP 2.2.

 The EXT-H101L2-RX-HDBT provides crystal clear HDR and full bandwidth 4K video in a compact formfactor. This receiver supports automatic downscaling from 4K to 1080P without refresh rate change for easier installation when mixing 4K and 1080P displays.

 Support for bi-directional PoC allows for easy installation by applying power to either the transmitter or the receiver end.



Features:

  • Compact formfactor
  • Supports HDMI 2.0b, 4K@60 4:4:4, HDR, HDCP 2.2.
  • 4K HDMI signal extension up to 40m, and 1080p is 70m.
  • Supports 4K to 1080p auto downscaling.
  • Supports CEC, IR, and RS232 pass-through.
  • Supports bi-directional 24V PoC for simplified installations.

Specifications:

Model

Receiver

Input

HDBT IN

Output

HDMI OUT

Control Ports

IR IN, IR OUT, RS232

General

Transmission Mode & Distance

HDBaseT;1080p ≦ 70m; 4Kx2K ≦ 40m

Resolution

Up to 4K@60Hz 4:4:4

Bandwidth

18Gbps

HDMI Standard

HDMI2.0b & HDCP2.2

Power Consumption

7W(Max)

Temperature

-10 ℃~ 50℃

Humidity

0% ~ 90%

Power supply

Input: 100VAC~240VAC, 50/60Hz; Output: 24VDC 1.25A

Dimension(W*H*D)

115mm x 84mm x 24mm

Net Weight(g)

235g

Дополнительная информация

Дополнительная информация

Длина, см 0
Ширина, cm 0
Height, cm 0
Energijos sąnaudų klasė #N/D
Производитель TIGHT AV
Код производителя EXT-H101L2-RX-HDBT
Страна производства
Штрих-код 570647013434
User's manual Download
Gross weight, kg 0.4
Вес нетто, кг 0.235
Package Height, cm 8.4000
Package Width, cm 11.5000
Package Depth, cm 2.4000
Объем упаковки, м3 0
Комментарий для бизнес-клиентов #N/D
