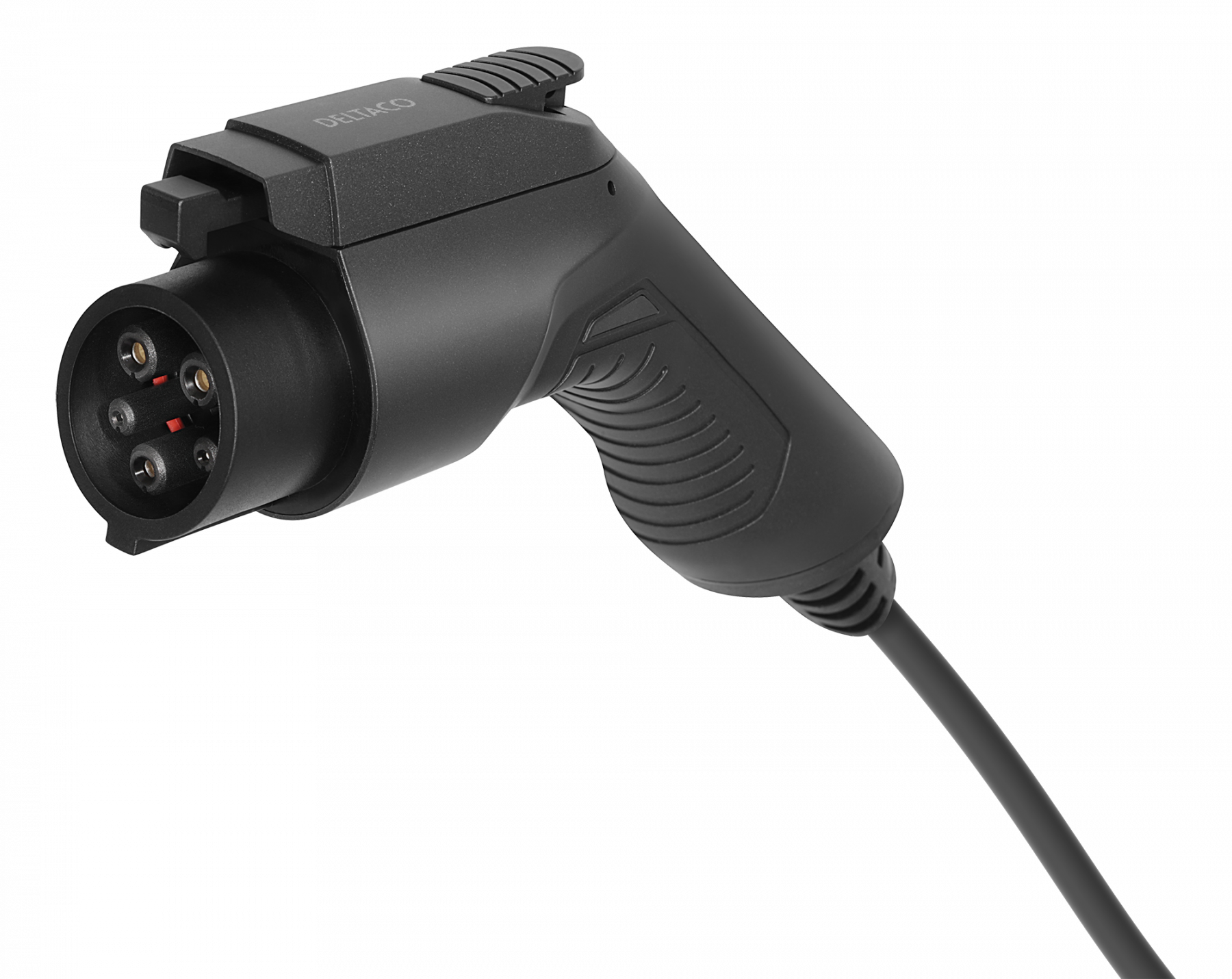

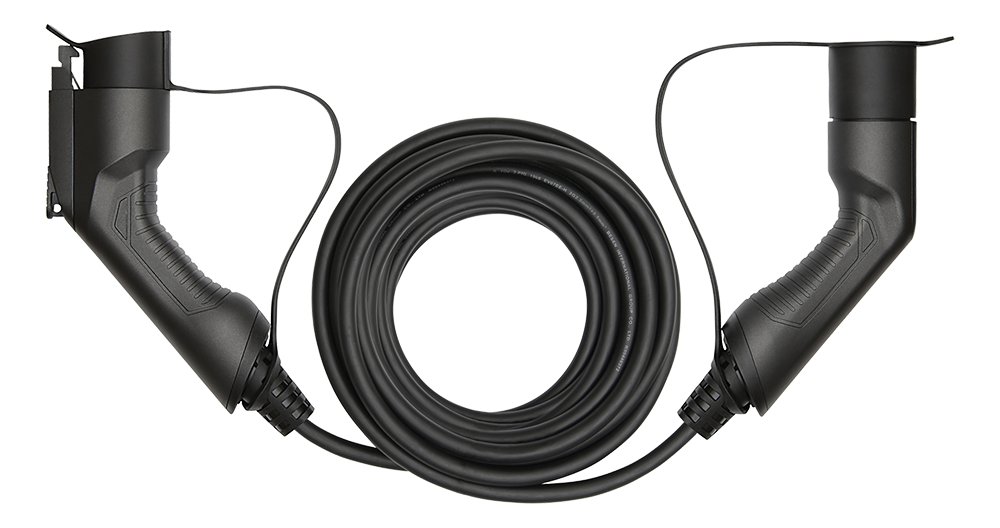

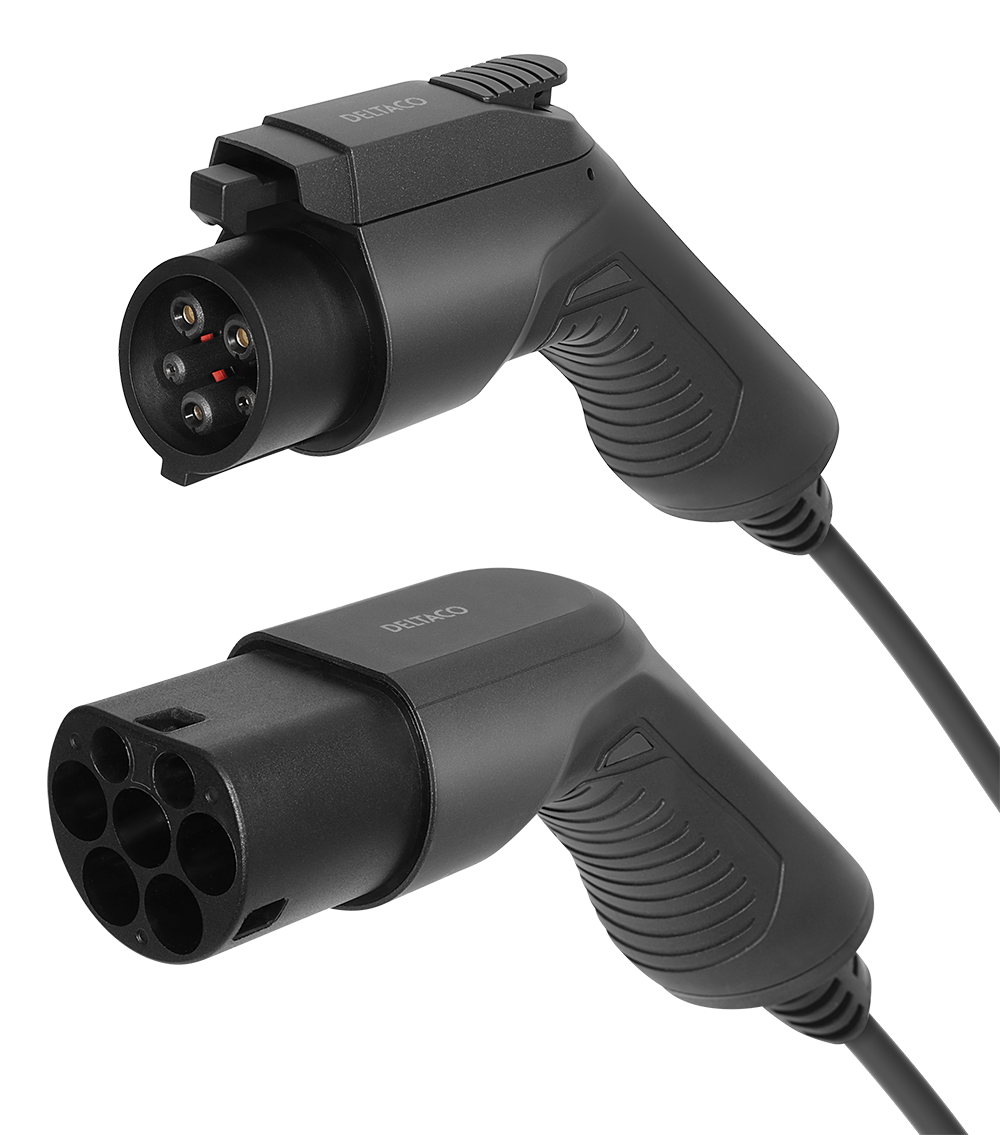

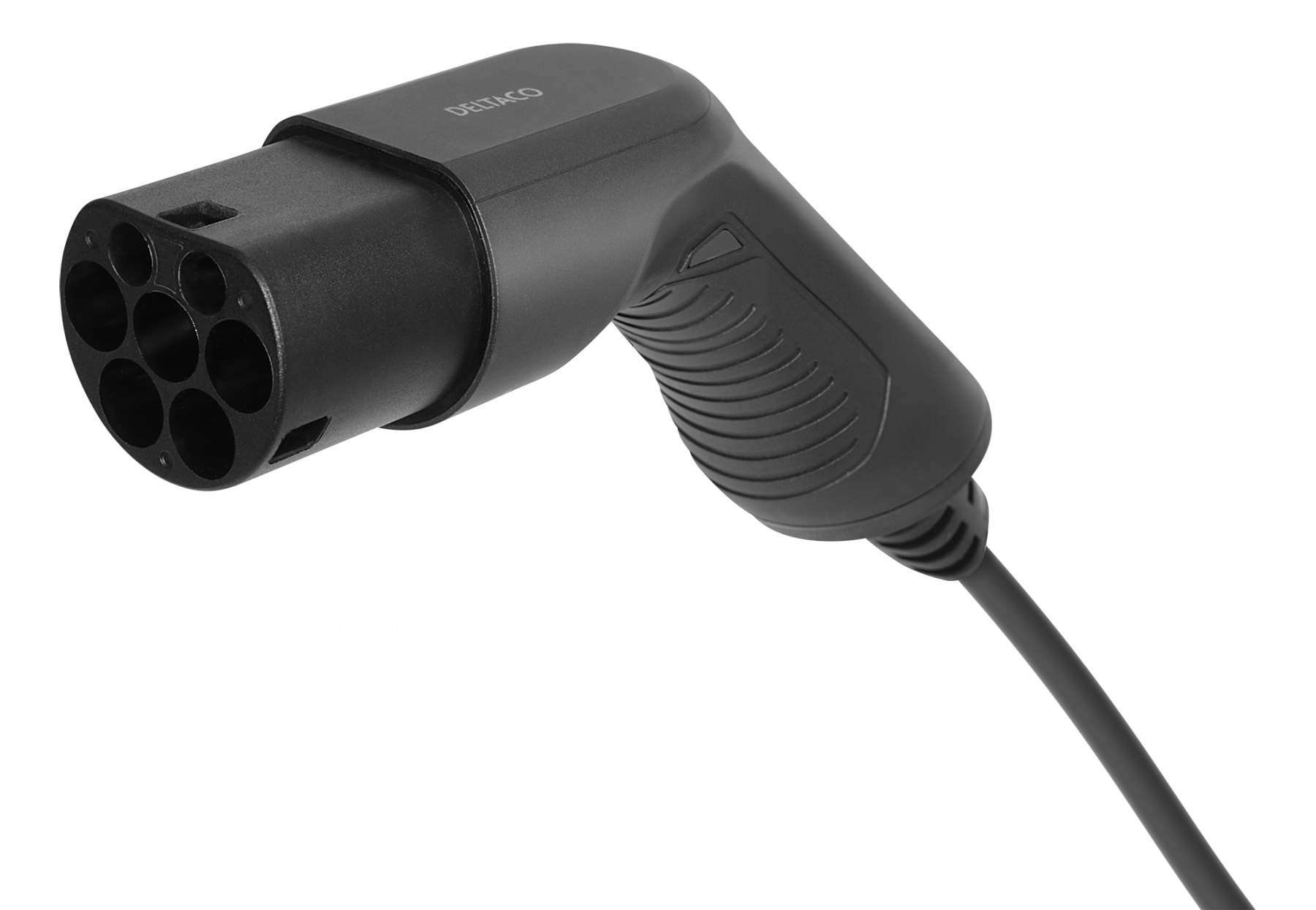

Charging cable DELTACO e-Charge type 2 to type 1, 1 phase, 16A, 3.6KW, 10M, black / EV-11010
Описание

Подробности

Deltaco e-Charge charging cable, type 2 to type 1, 1 phase, 16A, 3.6KW, 10M, black

Deltaco e-Charge EV-11010 charging cable fits all vehicles with a Typ1 socket for those who want to charge via a public charger or their own dedicated charging box at home with a Type2 socket called mode 3 charging. Charging power up to 3.6KW. Silver-plated connections guarantee good contact and long service life. Length 10M. Equipped with dust cover to protect against dust, dirt and moisture during storage. The cable is made of a TPE material that provides good resistance to oil, abrasion and UV light. The cable is also flexible in cooling.

Cars with Type 1 sockets are e.g. Mitsubishi Outlander. The charging of the car is monitored through a two-way communication between the car and the charger. When the cable is connected to the car, a self-test is performed which ensures that the cable is correctly connected and that the car is ready to receive power, before charging begins and the cable is energized. After charging, unplug the charging cable on the side of the car first so that it is disconnected from the charger.

• The cable must not be repaired or spliced ​​as this may affect its safety and function.
• Certification: TUV 2 PfG 1908
• Cable: EV07EE-H, 3G2,5mm² + 1x05mm²
• Classification: IP66
• Weight: 3.4KG
• Working temperature: -30 ° C - + 50 ° C

Дополнительная информация

Дополнительная информация

Длина, см 0
Ширина, cm 0
Height, cm 0
Energijos sąnaudų klasė #N/D
Производитель DELTACO
Код производителя EV-11010
Страна производства
Штрих-код 733304804758
User's manual Download
Gross weight, kg 3.6
Вес нетто, кг 3.3
Package Height, cm 13.0000
Package Width, cm 40.0000
Package Depth, cm 38.0000
Объем упаковки, м3 0.0198
Комментарий для бизнес-клиентов #N/D
