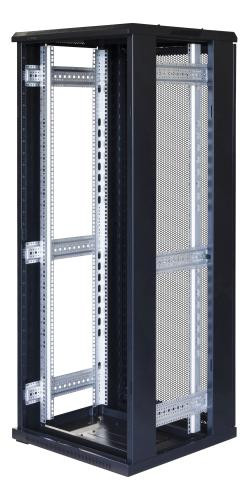

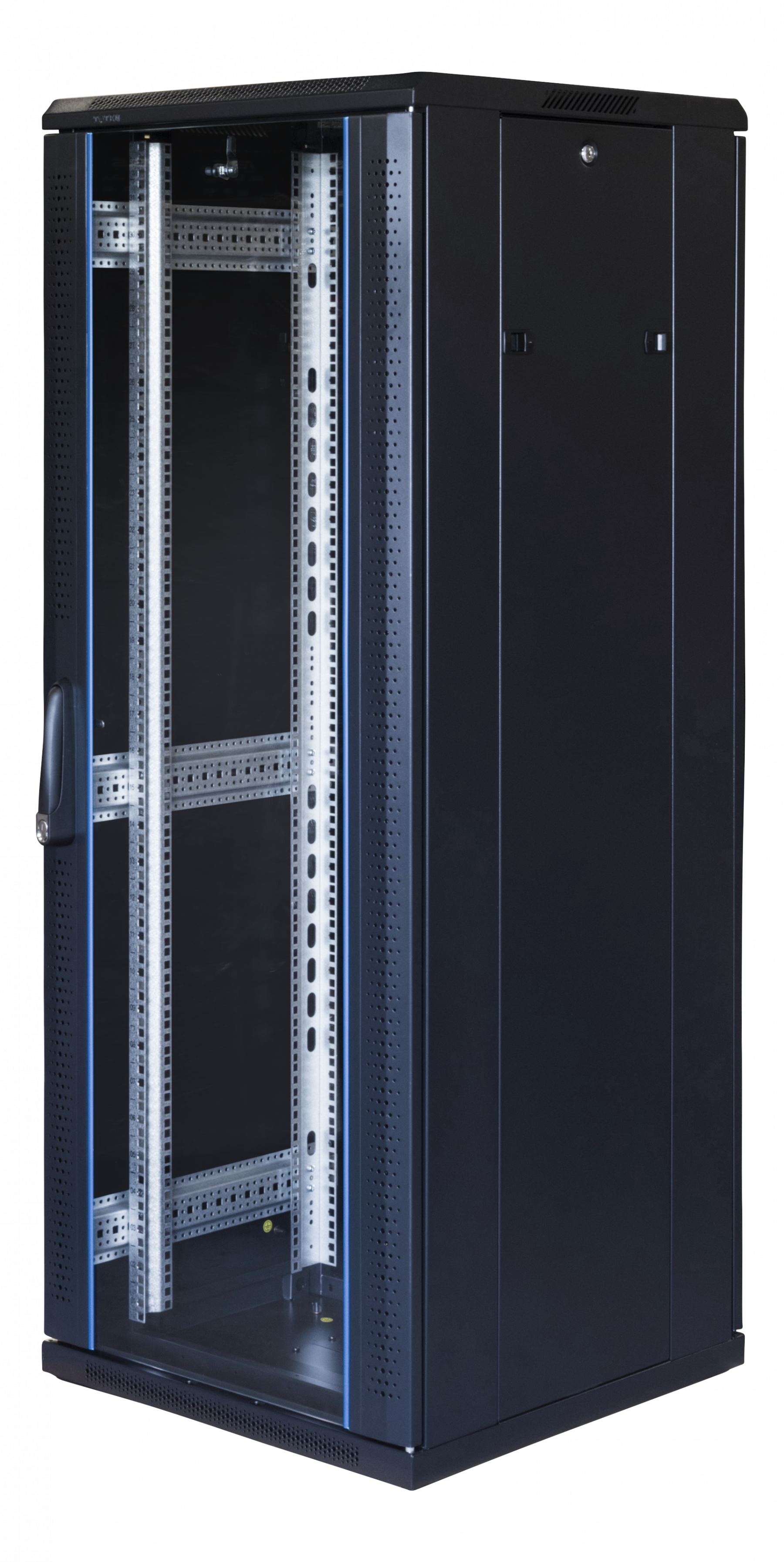

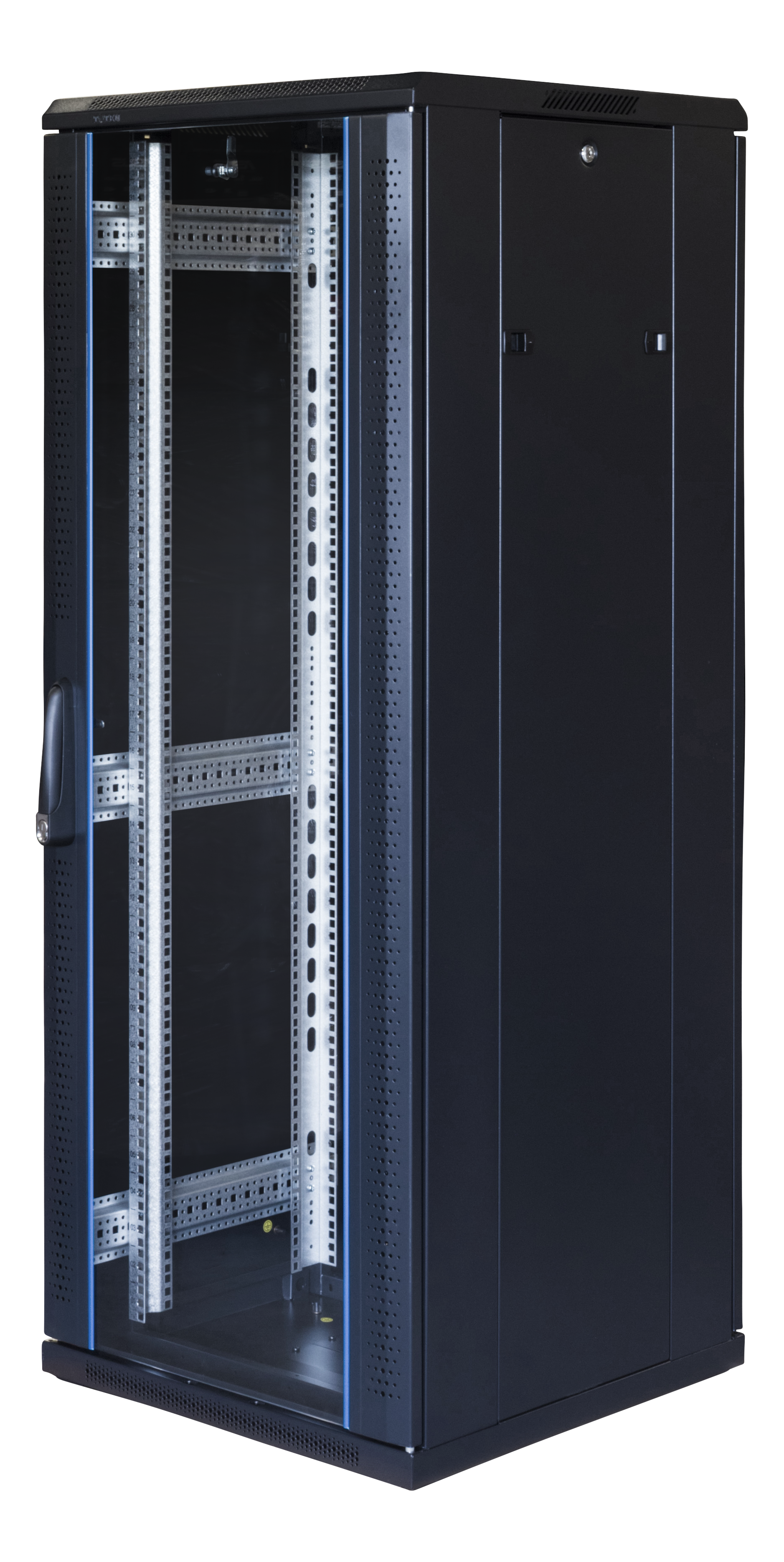

System G, 19" cabinet, 32U, 600x600, glass front, perforated rear door, 800kg load, black
- Front door of tempered glass with ventilated steel frame.
- Back door of perforated metal with 75% ventilation rate.
- Distributed loading capacity: 800kg (Static).
- Internal mounting width of 487mm.
- Mounting columns of 2mm zinc alloy.
Machine-made cabinet where all parts have been laser-cut, perforated with a hydraulic turret punch and welded by robots to achieve extreme precision. All sharp edges are blasted away so that everything is then assembled and quality assured according to ISO 9001.The 19 "units are mounted on four columns of a patented zinc alloy. A material that helps to counteract electrostatic damage, is very durable for repeated installations and has a dirt-protected surface structure. The columns are adjustable forwards and backwards in steps of 25 millimeters. in addition, large holes for cable entry and a clear Unit marking that is visible even when the units are mounted.
The roof has space for TOTEN's modular fan system with practical installation from the outside and provides a selectable cooling capacity
At the bottom there are gradually openable cable glands for up to 1000 network cables and separate holes for power cables. - Дополнительная информация
-
Дополнительная информация
Длина, см 0 Ширина, cm 0 Height, cm 0 Energijos sąnaudų klasė #N/D Производитель TOTEN Код производителя G6.6632.9801 Страна производства Штрих-код 733304802457 User's manual Download Gross weight, kg 76.5 Вес нетто, кг 75.8 Package Height, cm 174.0000 Package Width, cm 68.0000 Package Depth, cm 72.0000 Объем упаковки, м3 0.8519 Комментарий для бизнес-клиентов #N/D - Отзывы
-
