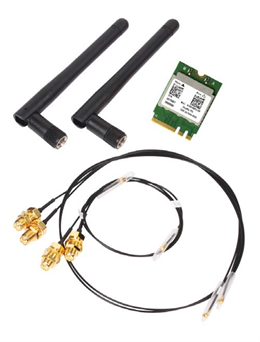

Shuttle WLN-M WLAN kit, 802.11b / g / n / ac, M.2-2230 card, incl. cables and antennas, 2.4 / 5GHz, 580Mbps, Bluetooth 4.0
M.2 network card for Shuttle computers. In addition to the network card, there are also two external antennas (RP-SMA) and two antenna cables of 0.2m each.
• 802.11b / g / n / ac
• Chipset: Realtek RTL8821AE
• Bluetooth 4.0
• For: DH110, XH110 (V), SH110R4
Network cards, antenna cables, antennas, manuals and drivers are included in the package.
connectivity Technology Wireless
Number of antennas 2
Antenna External removable
Data Link Protocol 802.11b, 802.11g, 802.11n, Bluetooth 4.0, 802.11ac
Depth 3 cm
form factor Plug-in card
frequency Band 2.4 GHz, 5 GHz
features WPA2 encryption, WPA encryption
Interface type (bus) M.2 Card
Height 2.2 cm
encryption Algorithm AES, WPA, WPA2
Maximum temperature during operation 70 ° C
Supplied cables 1 x antenna cable (internal) - 21 cm
Supplied cables 1 x antenna cable (internal) - 29 cm
Supplied cables 2 x antenna cable (internal) - 53 cm
Included software Drivers and Utilities
My temperature during operation 0 ° C
Operating system required Linux, Microsoft Windows 7 (32/64 bits), Windows 8.1 (32/64 bit), Windows 10 (32/64 bits)
processor 1 x RTL8821AE - Realtek Semiconductor
Standards that are followed AES
Standards that are followed IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac
Type of device network adapter - Дополнительная информация
-
Дополнительная информация
Длина, см 0 Ширина, cm 0 Height, cm 0 Energijos sąnaudų klasė #N/D Производитель SHUTTLE Код производителя POZ-WLNM01 Страна производства Штрих-код 887993800035 User's manual Download Gross weight, kg 0.11 Вес нетто, кг 0.05 Package Height, cm 3.0000 Package Width, cm 14.0000 Package Depth, cm 19.0000 Объем упаковки, м3 0.0008 Комментарий для бизнес-клиентов #N/D - Отзывы
-
