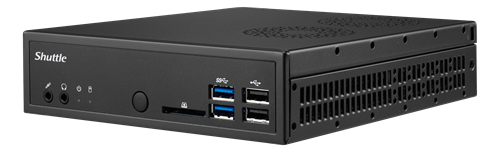

Shuttle XPC Barebone Slim DH170 - Slim Barebone supporting Intel processors Skylake, black PIB-DH170011 / DH170

Shuttle XPC Barebone Slim DH170 - Slim Barebone supporting Intel processors Skylake, black

Shuttle's XPC Barebone slim DH170 is a sturdy 1,3liters Barebone PC with H170 chispet for Intel LGA1151 processors codenamed "Skylake". It gives you the ability to have three monitors connected simultaneously, it provides two RJ45 ports for Gigabit connections. It comes included with a VESA bracket to be mounted in the shadows. With its various connections and reliable operation in temperatures up to 50 ° C allows it to work well in environments such as: digital signage, POS, POI, office, hospital and industrial activities.

• 2xDisplayPort 1.2
• 1xHDMI 1.4
• Designated 2xDDR3L SO-DIMM 1333 / 1600MHz memory (max 32GB)
• 4xUSB 2.0, 4x USB 3.0
• 2xRS-232
• SD card reader that can read SD / SDHC / SDXC

For a complete list of compatible accessories, please see here
Size (WxDxH): 190x165x43

number of channels    1
Display Type    No.
Width    19 cm
CPU    No CPU
CPU slot    LGA1151 Socket
CPU upgradability    Upgradeable
Data Link Protocol    Ethernet, Fast Ethernet, Gigabit Ethernet
Depth    16.5 cm
Effect    90 watts
Characteristics    Unbuffered, memory architecture with dual channel
Characteristics    UEFI BIOS, power on after power failure
Ethernet ports    2x Gigabit Ethernet
Compartment    1 (total) / 1 (free) x internal 2.5 "
Flash Memory Cards    SD Memory Card, SDHC Memory Card, SDXC Memory Card
form factor    SO DIMM 204-pin
Form Factor    Slim-PC
features    Wake on LAN (WoL), PXE support, Teaming support
Color    Black
graphics Processor    No graphics
Interface    1 x HDMI
Interface    1 x audio / headphones - mini-jack (1 in front)
Interface    1 x microphone - mini-jack (1 in front)
Interface    2 x DisplayPort
Interface    2x serial
Interface    4 x USB2.0 (2 in front, 2 in back)
Interface    4 x USB 3.0 (2 in front, 2 in back)
Interface    2 x LAN (Gigabit Ethernet)
Height    4.3 cm
included Accessories    VESA mounting kit
installed size    0 MB / 16 GB (max)
slots    1 (total) / 1 (idle) CPU x
slots    1 (total) / 1 (free) x PCIe 2.0 Half Mini
slots    2 (total) / 2 (free) x SO-DIMM 204-pin
slots    1 (total) / 1 (free) x M.2 Card
Chipset Type    Intel H170 Express
sound Output    5.1 channel surround
Operating Humidity    10-90% (non-condensing)
Maximum Operating Temperature    50 ° C
Max. CPU number    1
cables    Serial ATA cable
OS Provided    no operating system
Min Operating Temperature    0 ° C
Software    Drivers & Utilities
mounting Interface    100 x 100 mm, 75 x 75 mm
Nominal voltage    AC 120/230 V (50/60 Hz)
Standards    C-Tick, BSMI, CB, FCC, ETL, EMI, Directive 73/23 / EEC, Directive 89/336 / EWG
Standards    HD audio
Theft / burglary    Security lock slot (cable lock sold separately)
Technique    DDR3L SDRAM - non-ECC
Type    1 x SATA
Type    No HDD
Type    Card reader
Type    PC barebone
Device Type    power adapter
Controller Interface Type    SATA 6Gb / s
Weight    1.3 kg
